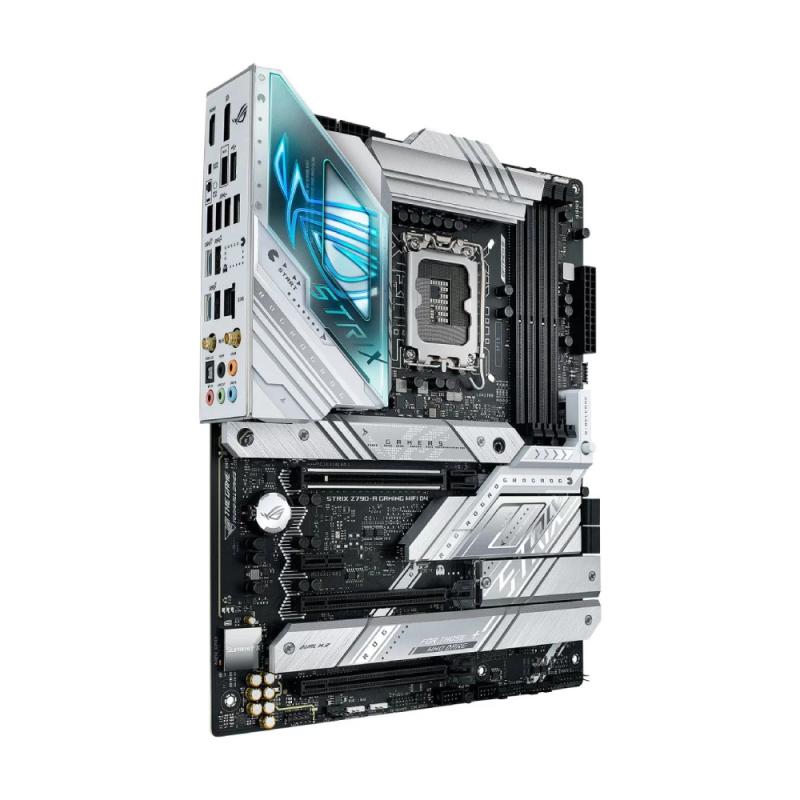

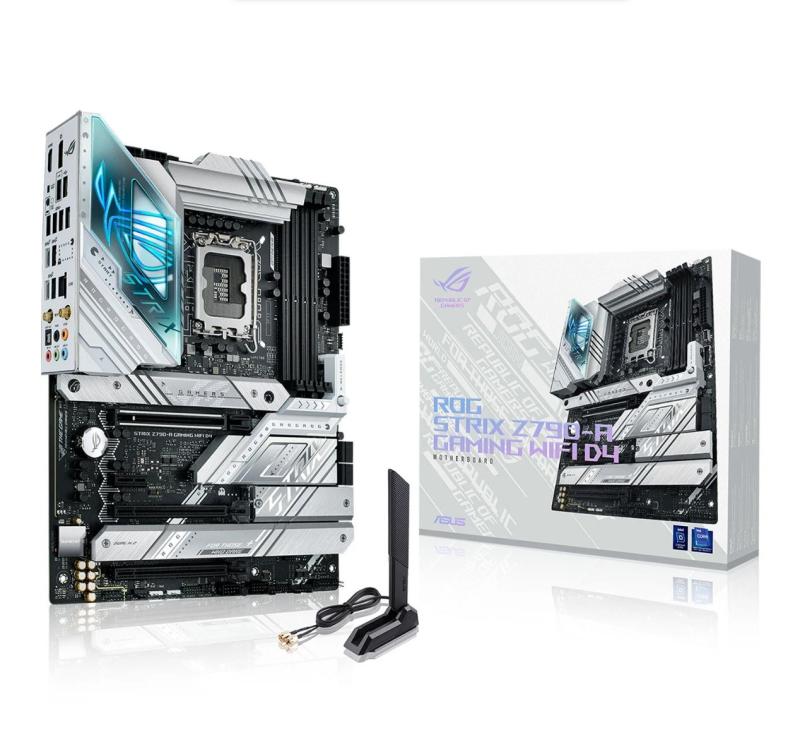

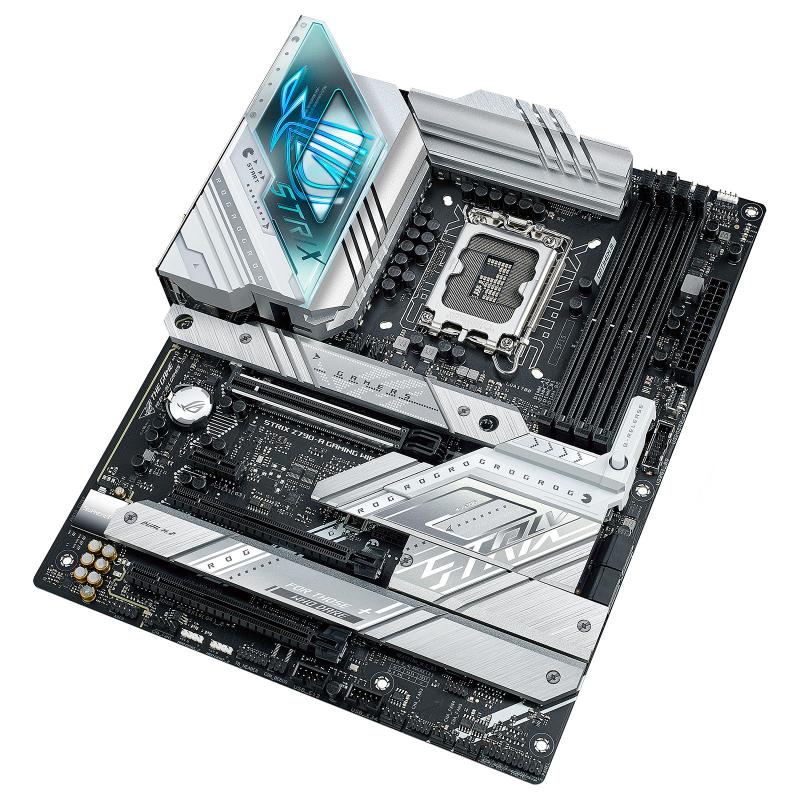

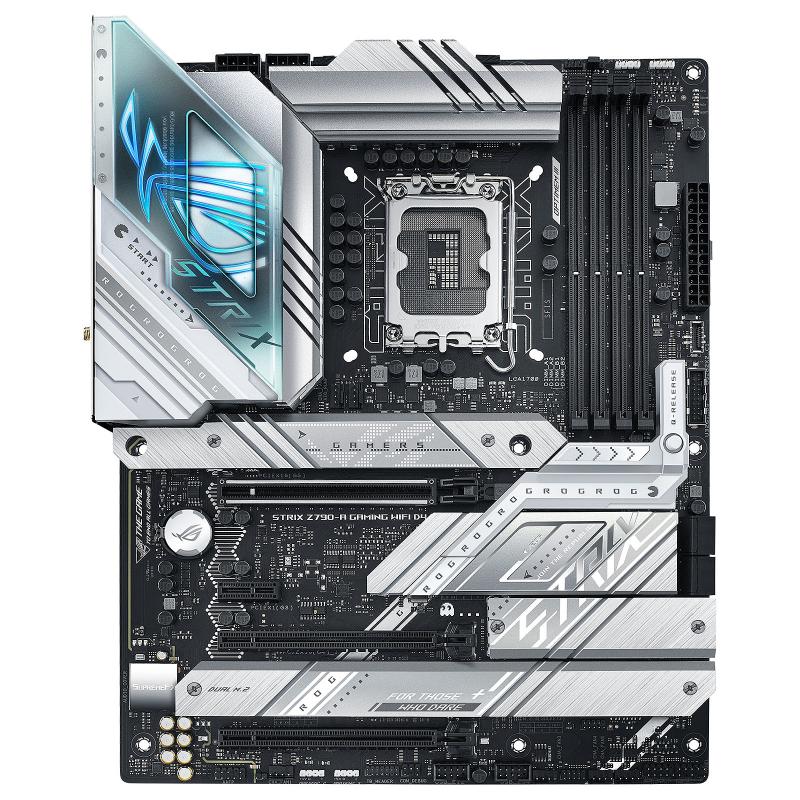

Placa de bază ASUS ROG STRIX Z790-A D4 GAMING WIFI

SKU: RS Z790-A WIFI D4
Producator: Asus
Disponibilitate:

Stoc epuizat


3.612,99 lei

Stoc epuizat

Placa de baza Asus ROG STRIX Z790-A D4 GAMING WIFI LGA 1700, 4 x DDR4 DIMM dual channel, 3x PCI Express x16, 1x PCI x1, 4x M.2, 4x SATA 6Gb/s, 10x USB, ATX

SKU: RS Z790-A WIFI D4 Categorie:
PCI

0

Serial-or-Paralel

No/No

Video-Connection

HDMI/DP

Wi-Fi

Yes

USB3

4-8

PCI-Ex1

1

Onboard-CPU

No

RAID support

Yes

Component for

PC

Windows operating systems supported

Windows 10, Windows 11

DisplayPort version

1.4

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

HDMI ports quantity

1

HDMI version

2.1

Maximum internal memory

128 GB

Processor manufacturer

AMD

USB 2.0 ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Audio output channels

7.1 channels

PCI Express x1 (Gen 3.x) slots

1

Line-in

Yes

PCI Express x16 (Gen 5.x) slots

1

Supported storage drive types

HDD & SSD

Supported memory types

DDR4-SDRAM

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

2

DisplayPorts quantity

1

VGA (D-Sub) ports quantity

0

Parallel processing technology support

Not supported

DVI-D ports quantity

0

Drivers included

Yes

Model Chipset

Z790

Gaming

Da

Format

ATX

Soclu Procesor

Socket 1700

Tip Memorie:

DDR4

Numar sloturi memorie

4

Memorie maxima

128 GB

Tip slot interfata grafica

PCIe 5.0 x16

Chipset audio integrat

Realtek

Canale audio

7.1

Wireless

Da

BLUETOOTH

Da

USB Type-C

Da

HDMI

Da

Thunderbolt

Nu

Sloturi M.2

4

RJ-45 LAN

1

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

RAID levels

0, 1, 5, 10

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

RGB LED pin header

Yes

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard form factor

ATX

Motherboard chipset family

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

12V power connector

Yes

Clear CMOS button

Yes

ECC сompatibility

Non-ECC

Thunderbolt headers

1

Number of M.2 (M) slots

4

Back-to-BIOS button

Yes

Number of chassis fan connectors

5

Motherboard chipset

Intel Z790

Audio Chip

Realtek ALC4080

Supported memory clock speeds

5333 MHz

MB-Format

ATX

MB-Socket

1700

PCI-Ex16

3

RAM-Slots

4

Microphone in

Yes

Headphone outputs

1

Bluetooth version

5.3

Cables included

SATA

Width

305 mm

Depth

244 mm

Power source type

ATX

Package height

290 mm

Package width

368 mm

Package depth

293 mm

Producator

ASUS

Garantie

36
