| KEOR SP SERIES | |||||
| Line Interactive Technology | |||||
| EN 62040-3 CLASS = VI | |||||
| Automatic Voltage Regulation (AVR) | |||||
| Advanced Battery Management (ABM) | |||||
| Input Frequency auto sensing ( 50/60 Hz ) | |||||
| Auto restart after mains recovery | |||||
| Charging during switched off mode | |||||
| Short circuit and overload protection | 600VA to 2000VA – 1ph/1ph | ||||
| Cold Start Function | POWER FACTOR = 0.6 | ||||
| USB Communication Interface and Remote Monitoring Software (only for 1000-1500-2000VA) | |||||
| Compact size and user friendly operation | |||||
| Plug&Play Design | |||||
| USB Port | Yes |
|---|---|
| Capacitate putere UPS | 360W |
| Interfata | USB |
| USB 2.0 ports quantity | 1 |
| Products per master (outer) case | 1 pc(s) |
| Pallet net width | 120 cm |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Tip UPS: | Line Interactive |
| Capacitate Rack: | None |
| Ecran LCD: | Nu |
| Port USB | Da |
| UPS topology | Line-Interactive |
| Input operation voltage (min) | 170 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 207 V |
| Output operation voltage (max) | 253 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output power factor | 0.6 |

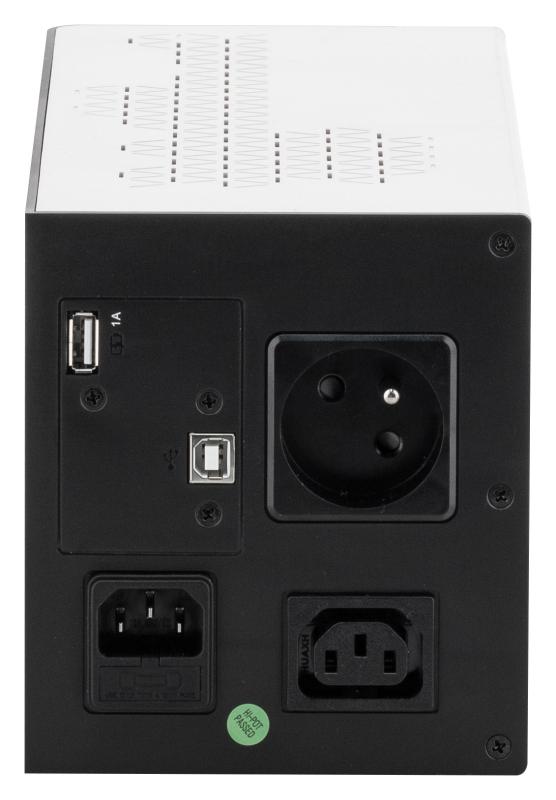

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB port type | USB Type-B |
| Form factor | Mini Tower |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Output voltage regulation | 10% |
| Input frequency | 45/65 Hz |
| Output frequency regulation | 1 Hz |
| Power protection features | Overcharge, Overdischarge, Overload, Short circuit |
| Potential-free output | No |
| Auto shut-off | No |
| Battery capacity | 7 Ah |
| Pallet net length | 100 cm |
| Output power capacity | 0.6 kVA |
| Output power | 360 W |
| Number of type F outputs | 1 |
| AC outlets quantity | 2 AC outlet(s) |
| Serial interface | No |
| Master (outer) case height | 218 mm |
| Pallet net height | 135 cm |
| Master (outer) case width | 192 mm |
| Master (outer) case length | 392 mm |
| Efficiency | 96% |
| Pallet net weight | 335.6 kg |
| Master (outer) case gross weight | 5.59 kg |
| Protectie supratensiune | Da |
| Operating temperature (T-T) | 0 – 40 °C |
| Number of batteries supported | 1 |
| Width | 120 mm |
| Power source type | AC |
| Battery technology | Sealed Lead Acid (VRLA) |
| Weight | 5 kg |
| Product colour | Black, White |
| Compliance certificates | CE |
| Operating relative humidity (H-H) | 0 – 95% |
| Sustainability compliance | Yes |
| Package width | 120 mm |
| Harmonized System (HS) code | 85078000 |
| Package height | 138 mm |
| Products per pallet | 60 pc(s) |
| Depth | 330 mm |
| Noise level | 40 dB |
| Certification | EN 62040-1, EN 62040-2 |
| Package weight | 5.31 kg |
| Package depth | 5.46 mm |
| Tip: | Line-interactive |
| Tensiune de alimentare | 230 VAC |
| Baterie | Sealed Lead-acid |
| Schuko | 1 |
| Atentionari Baterie slaba | Da |
| Atentionari Supratensiune | Da |
| Atentionari Supraincarcare | Da |
| Protectie Scurt-Circuit | Da |
| Protectie supraincarcare | Da |
| Numar baterii | 1 |
| Incarcare | 360 W |
| Putere | 600 VA |
| Height | 13.8 mm |
| Capacitate baterie | 12V/7Ah |
| Dimensiuni | 330 x 138 x 120 mm |
| Greutate | 4.8 Kg |
| IEC C13 | 1 |
| Producator | LEGRAND |
| Garantie | 24 |
