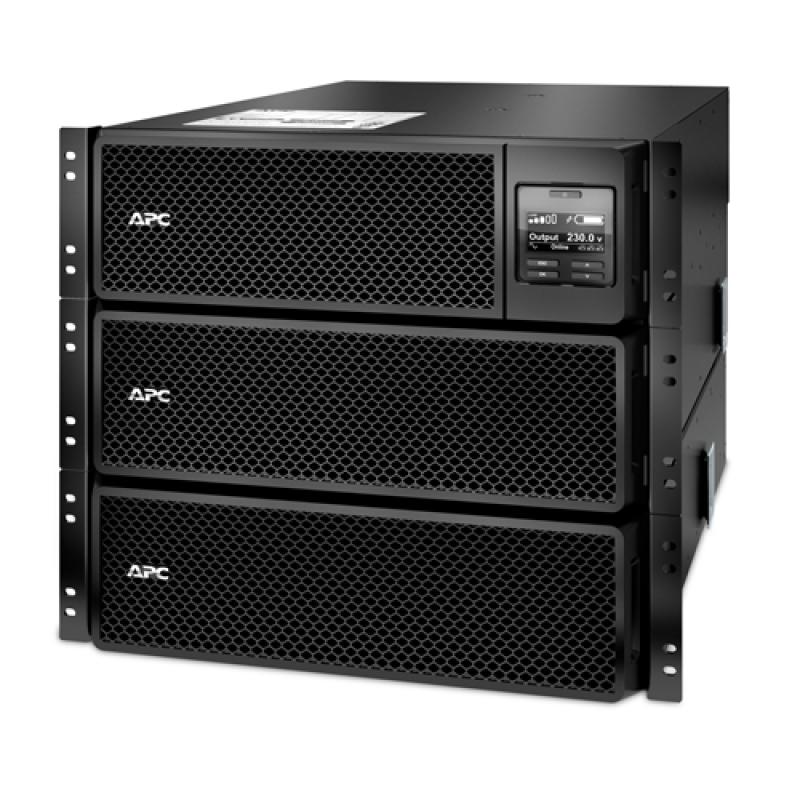

APC Smart-UPS SRT 8000VA RM 230V
Please enter load to see calculated “Max. Capacity Used”
| Culoare | Negru |
|---|---|
| Rackable | Yes |
| USB Port | Yes |
| Capacitate putere UPS | 8000W |
| Quick installation guide | Yes |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Temperature sensor | Yes |
| Rack mount kit | Yes |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Tip UPS: | Online |
| Capacitate Rack: | 6U |
| Ecran LCD: | Da |
| Port USB | Da |
| Number of output phases | 1 |
| Serial interface | Yes |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Non-operating altitude | 0 – 15000 m |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| Form factor | Rackmount/Tower |
| Auto-restart | Yes |
| SmartSlot | Yes |
| UPS topology | Double-conversion (Online) |
| Input operation voltage (min) | 100 V |
| Surge energy rating | 480 J |
| Crest factor | 3:1 |
| Power plug | Hardwire |
| AC outlets quantity | 10 AC outlet(s) |
| Serial interface type | RJ-45 |
| Bracket | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output power capacity | 8 kVA |
| Rack capacity | 6U |
| Input operation voltage (max) | 476 V |
| Number of output IEC jumpers | 3 |
| Output power | 8000 W |
| Efficiency | 94.8% |
| Battery capacity | 1728 VAh |
| Typical backup time at full load | 5.2 min |
| Typical backup time at half load | 14.5 min |
| Total carbon footprint (kg of CO2e) | 18632.76 |
| Protectie supratensiune | Da |
| UPS-Management | Yes |
| Display | Da |
| Operating temperature (T-T) | 0 – 40 °C |
| Software CD | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Operating relative humidity (H-H) | 0 – 95% |
| Warranty card | Yes |
| Width | 71.5 mm |
| Harmonized System (HS) code | 85078000 |
| Display type | LCD |
| LED indicators | Status |
| Battery recharge time | 1.5 h |
| Battery life (max) | 5 year(s) |
| Storage temperature (T-T) | -15 – 45 °C |
| Cables included | USB cable |
| Noise level | 55 dB |
| Package width | 600 mm |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Packaging content | Web/SNMP Management Card |
| Package depth | 1000 mm |
| Height | 2.63 mm |
| Package height | 461 mm |
| Weight | 111.8 kg |
| Package weight | 130 kg |
| Products per pallet | 1 pc(s) |
| Depth | 43.2 mm |
| Numar baterii | 2 |
| Tip: | Online |
| Alarme sonore | Da |
| IEC C13 | 6 |
| Tensiune de alimentare | 230V |
| Baterie | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Baterie inlocuitoare | APCRBC140 |
| Timp incarcare | 1.5 ore |
| IEC C19 | 4 |
| Interfata | RJ-45 SerialSerial RJ-45Smart-SlotUSB |
| Montare in Rack | Da6U |
| Dimensiuni | 263 x 432 x 715 mm |
| Greutate | 111.82 kg |
| Altii | Hard Wire 3 wire (H N + G) 3x IEC Jumpers |
| Putere | 8000 VA |
| Capacitate baterie | 1728 VAh |
| Incarcare | 8 kW |
| Timp mediu de functionare | 14.5 minute |
| Altele | Montare in rack: 6U |
| Producator | APC |
| Garantie | 36 |
