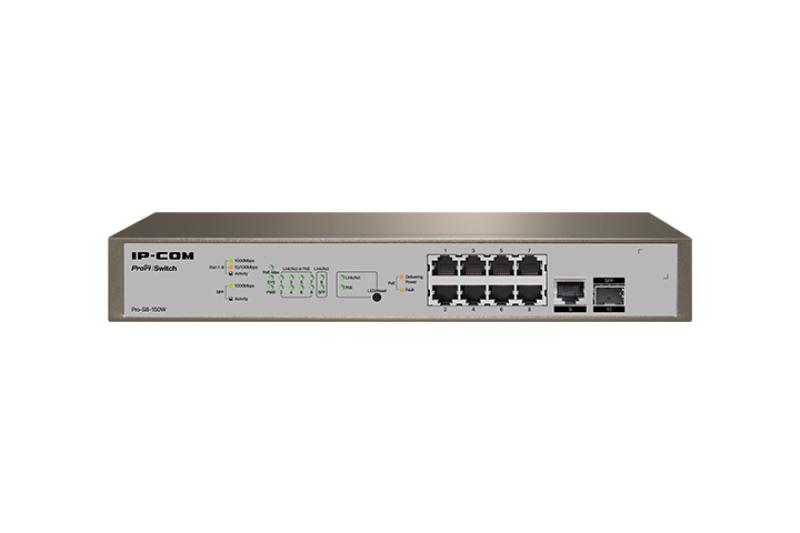

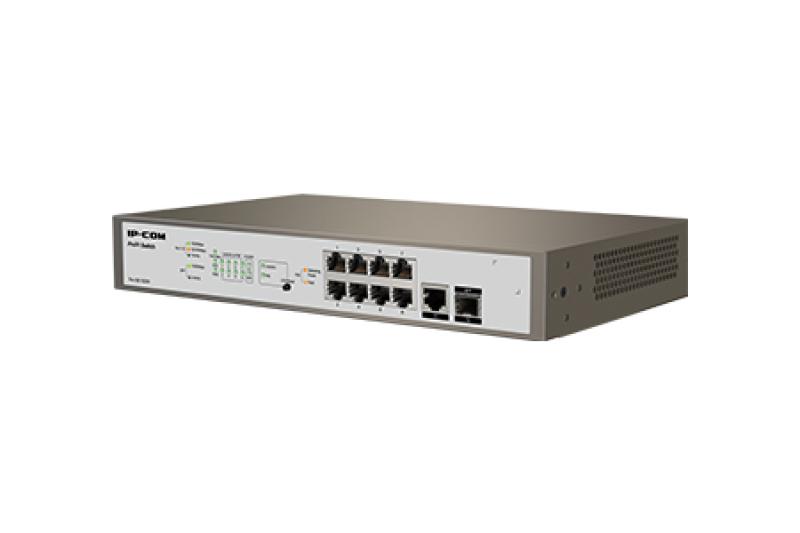

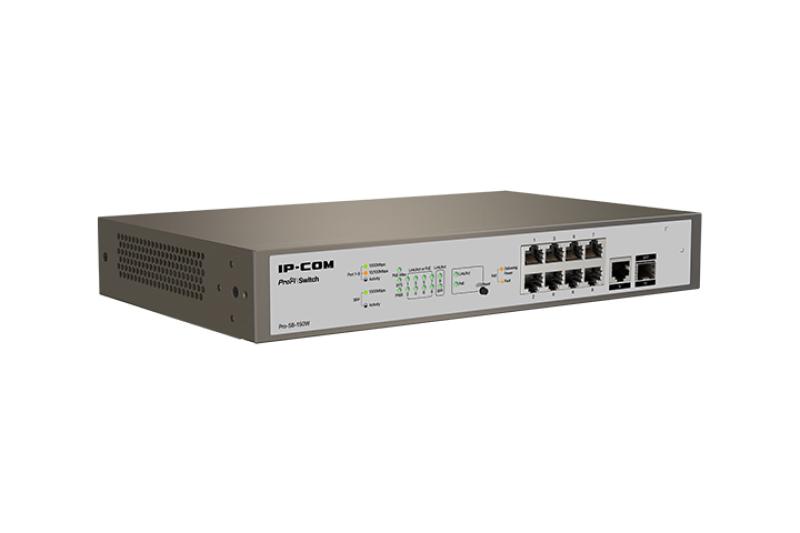

IP-COM PRO-S8-150W, 8 x 10/100/1000 Base-T Ethernet ports(PoE), 1 x
Stoc epuizat
1.227,99 lei
Stoc epuizat
IP-COM PRO-S8-150W, 8 x 10/100/1000 Base-T Ethernet ports(PoE), 1 x 10/100/1000 Base-T Ethernet port(data), 1 x 1000 Base-X SFP port, Standards&Protocols: IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z、 IEEE802.3x、IEEE802.3af/at、IEEE802.1p、IEEE802.1q、IEEE802.1w、IEEE802. 1d、 IEEE802.1s, Switching capacity: 20 Gbps, 1 X RJ45 Console port, Packet forwarding rate: 14.9 Mpps, VLAN Layer-3 interfaces.
| LAN-Port-Type | Gigabit |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Link aggregation | Yes |
| Power over Ethernet (PoE) | Yes |
| Rack mounting | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Static route | Yes |
| Web-based management | Yes |
| Switch type | Managed |
| Port mirroring | Yes |
| Form factor | 1U |
| Access Control List (ACL) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| IGMP snooping | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Installed SFP modules quantity | 0 |
| 10G support | No |
| Spanning tree protocol | Yes |
| Multicast support | Yes |
| IP routing | Yes |
| MAC address table | 16000 entries |
| Packet buffer memory | 1.5 MB |
| Loop protection | Yes |
| ARP inspection | Yes |
| Switching capacity | 20 Gbit/s |
| BPDU filtering/protection | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Store-and-forward | Yes |
| MAC address auto-learning supported | Yes |
| Total Power over Ethernet (PoE) budget | 130 W |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Forwarding rate | 14.9 Mpps |
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| Porturi RJ 45 | 5-10 |
| Viteza Transfer | Gigabit |
| Porturi SFP | 1-2 |
| Montare in Rack | Da |
| SFP module slots quantity | 1 |
| Management | Da |
| PoE | Da |
| Operating relative humidity (H-H) | 10 – 90% |
| Product colour | Grey |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| LED indicators | Yes |
| Power source | AC |
| Compliance certificates | CE, RoHS |
| AC input voltage | 100 – 240 V |
| Certification | FCC, CE, RoHS |
| Height | 44 mm |
| Depth | 179.6 mm |
| Width | 294 mm |
| Producator | IP-COM |
| Garantie | 36 |
