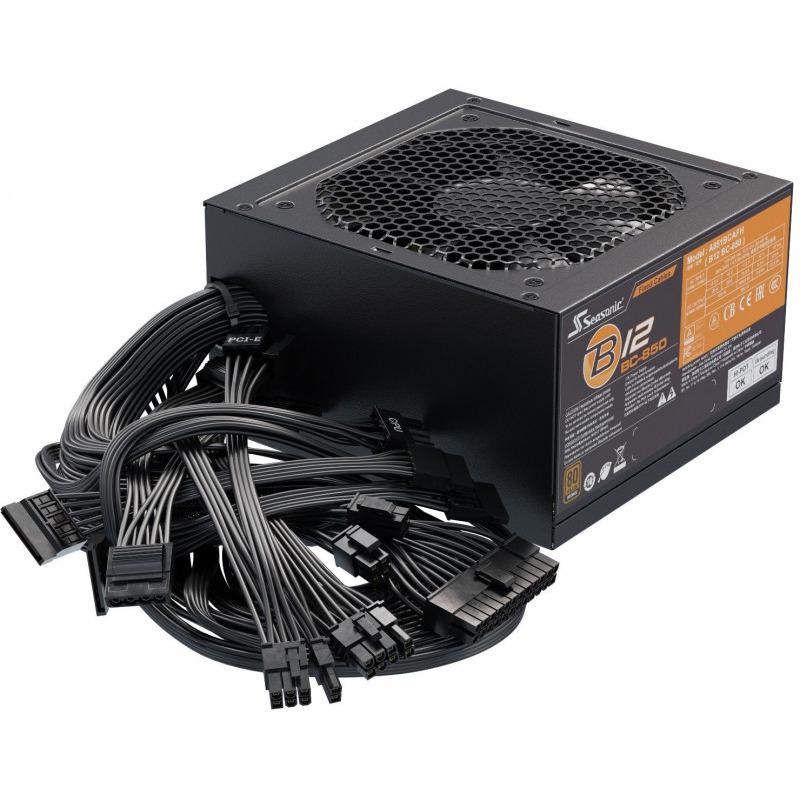

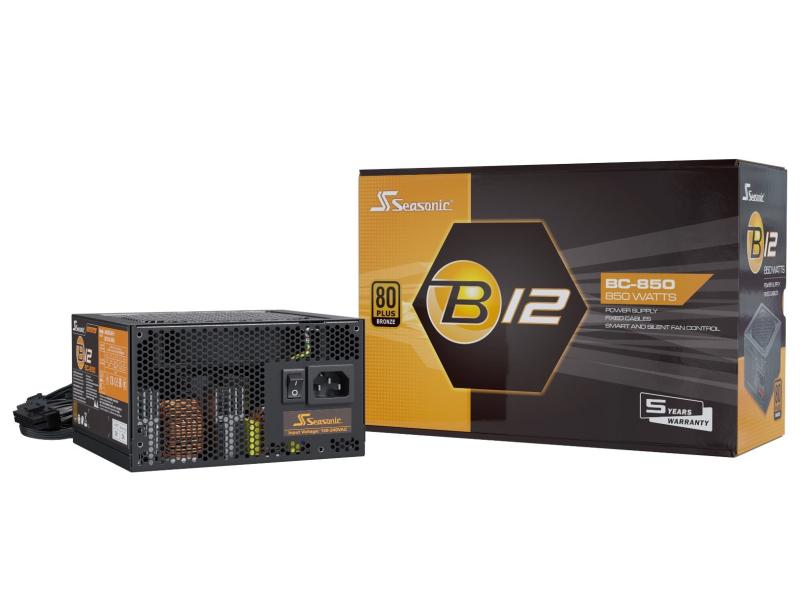

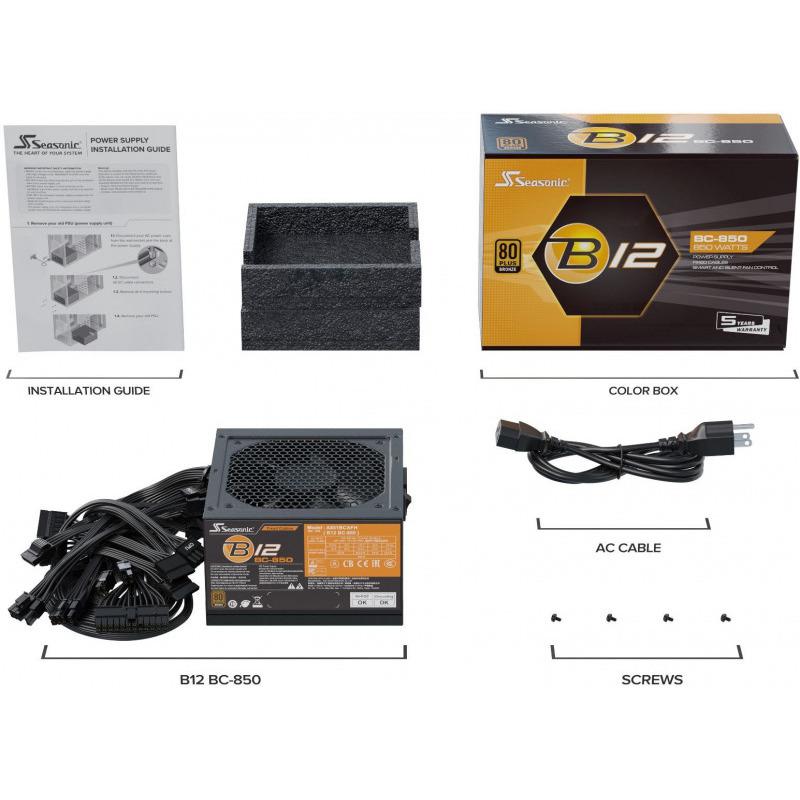

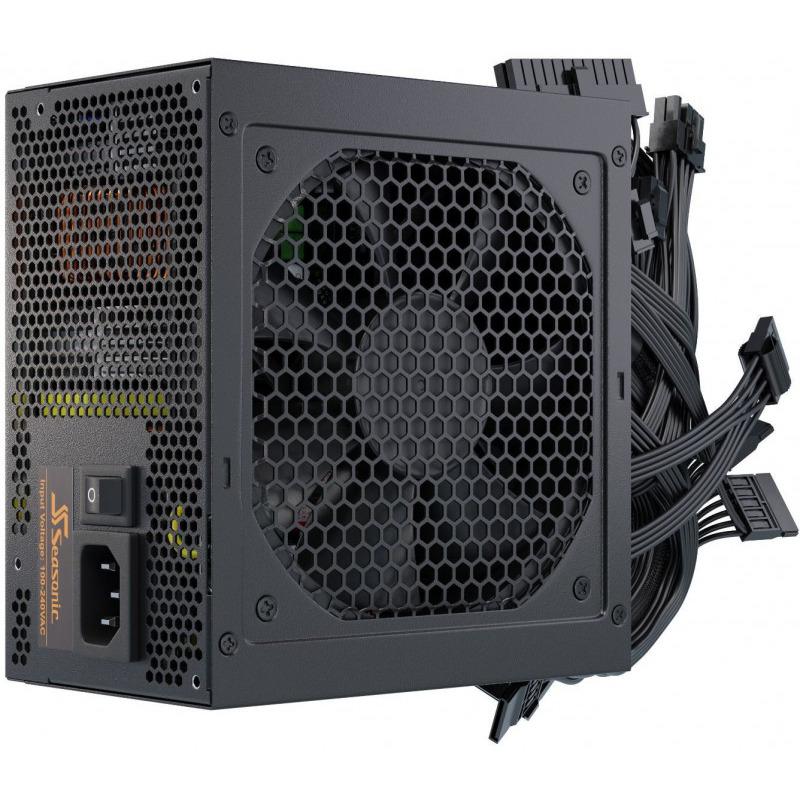

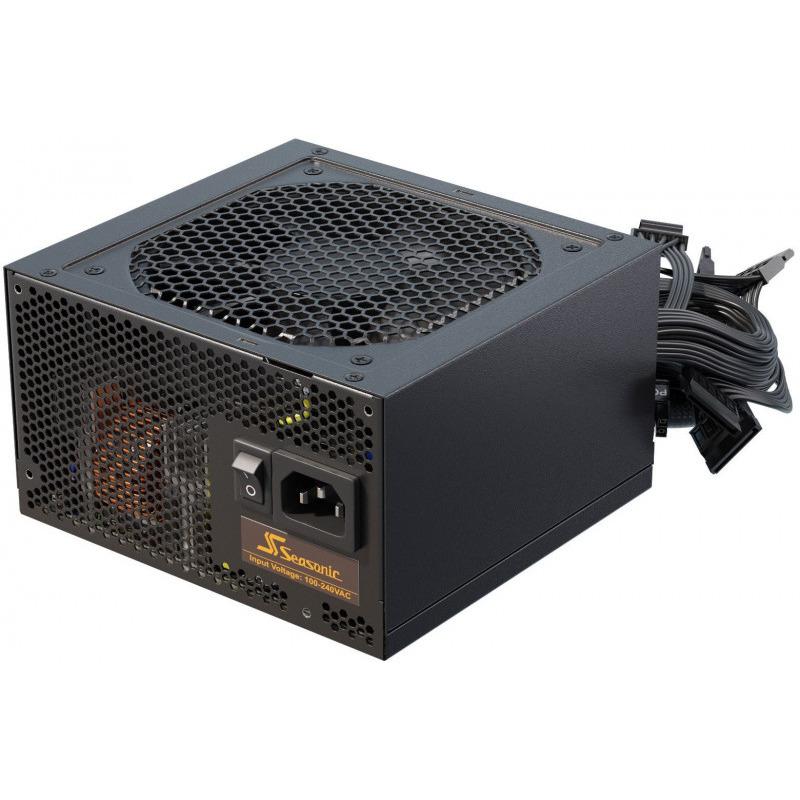

Sursa Seasonic B12 BC-850 80+ Bronze 850W, ATX, Active PFC, Eficienta 85%, Protectii OPP, OVP, OCP, SCP
| PSU Type | ATX |
|---|---|
| Depth | 140 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Purpose | PC |
| Harmonized System (HS) code | 84733020 |
| Operating temperature (T-T) | 0 – 50 °C |
| Sustainability certificates | ENERGY STAR |
| 80 PLUS certification | 80 PLUS Bronze |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| AC input voltage | 100 – 240 V |
| Fan diameter | 12 cm |
| Height | 86 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Width | 150 mm |
| Mean time between failures (MTBF) | 100000 h |
| Conectivitate | Non Modular |
| Iluminare RGB | Nu |
| Certificare 80 Plus | 80 PLUS Bronze |
| Input current | 10 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+5V) | 15 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | Sleeve |
| Fan location | Top |
| Certification | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Total power | 850 W |
| Combined power (+12V) | 840 W |
| Max output current (+12V) | 70 A |
| PSU-Power | 850 W |
| PFC | Active |
| Producator | SEASONIC |
| Garantie | 60 |
