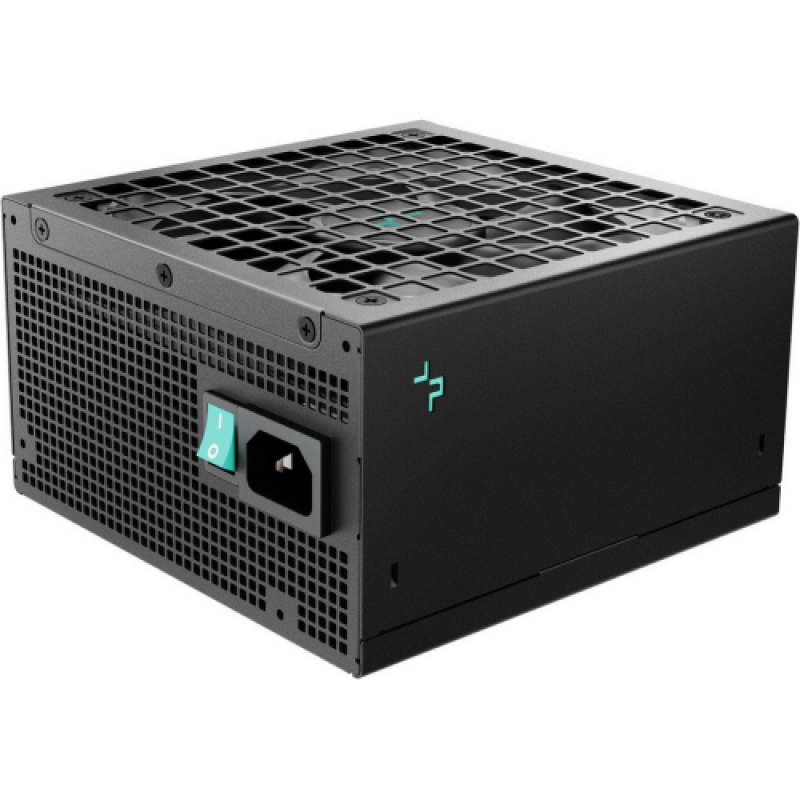

Sursa DEEPCOOL PN1000M 1000W 80 PLUS Gold, Active PFC+ Full Bridge SRC LLC+ DC to DC, Eficienta 90% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
| Cooling type | Active |
|---|---|
| Number of fans | 1 fan(s) |
| Purpose | PC |
| Mean time between failures (MTBF) | 100000 h |
| Recomandat Gaming | Da |
| Modular | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Power supply unit (PSU) form factor | ATX |
| Fan location | Top |
| Number of SATA power connectors | 8 |
| Cabling type | Fully-Modular |
| Power Factor Correction (PFC) type | Active |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Fan diameter | 13.5 cm |
| Hold time | 16 ms |
| CPU power cable length | 70 cm |
| Total power | 1000 W |
| ATX version | 3.1 |
| Power Good signal delay range | 100 – 150 ms |
| Sustainability certificates | ErP, Triman |
| Efficiency | 80Plus-Gold |
| Putere Sursa | 1000 W |
| PSU Type | ATX |
| Iluminare RGB | Nu |
| Conectivitate | Full – Modular |
| Certificare 80 Plus | 80 PLUS Gold |
| PSU-Power | 1000 W |
| SATA power cable length | 450,570,690,810 mm |
| Peripheral (Molex) power cable length | 930 mm |
| Operating temperature (T-T) | 0 – 40 °C |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| On/off switch | Yes |
| AC input frequency | 50/60 Hz |
| Compliance certificates | RoHS, WEEE |
| Certification | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS |
| 20+4 Pin ATX | 1 |
| -12V | 0.3 A |
| Rail +12V | 1 |
| PFC | Activ |
| Sursa Modulara | Da, Full Modulara |
| Certificare | 80+ Gold |
| Permite Wire Management | Da |
| 4+4 Pin ATX/EPS | 2 |
| 6+2 PCI-E | 3 |
| Molex | 2 |
| +5V | 22 A |
| +3.3V | 22 A |
| Permite Asamblare | Premium |
| +5Vsb | 3 A |
| Tip sursa | ATX 3.1 |
| SATA | 8 |
| +12V 1 | 83.3 A |
| Dimensiuni | 150 x 86 x 150 mm |
| 12V-2x6 Pin PCI-E | 1 |
| Numar de ventilatoare | 1 x 135 mm |
| Nivel zgomot | 24.12 dB(A) |
| Protectii | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| Producator | DEEPCOOL |
| Garantie | 120 |
