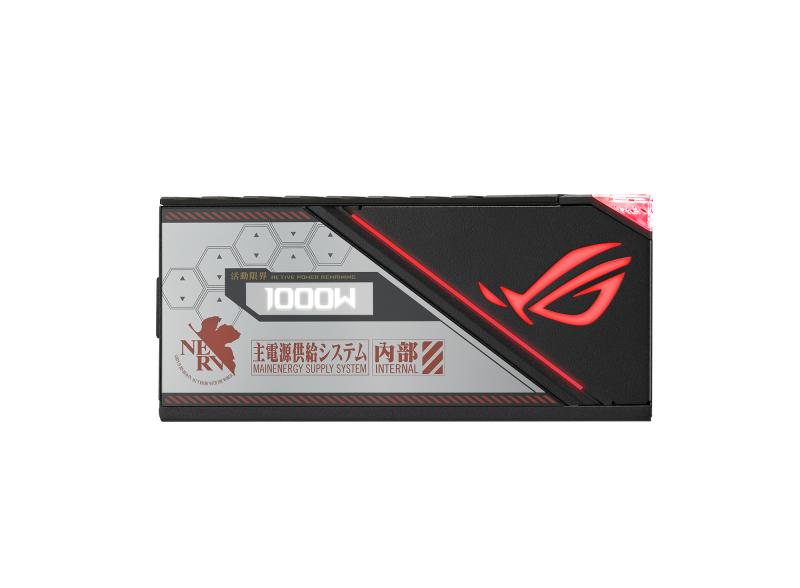

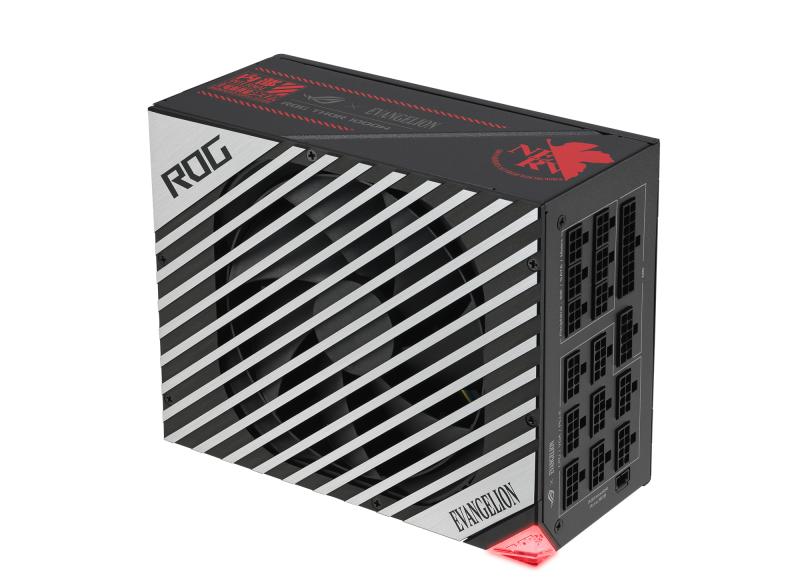

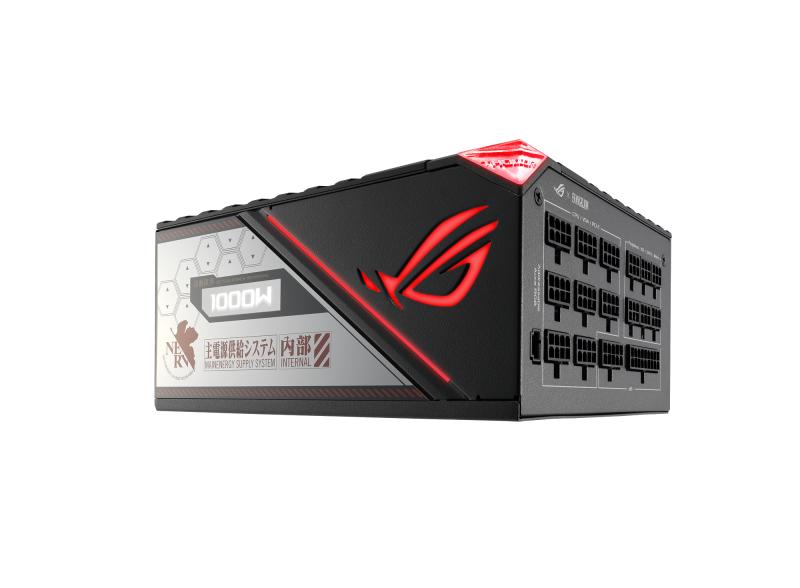

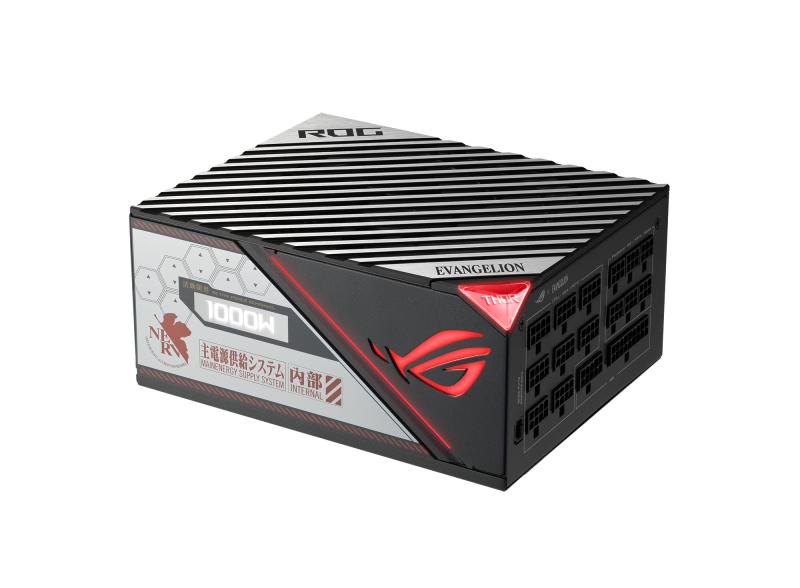

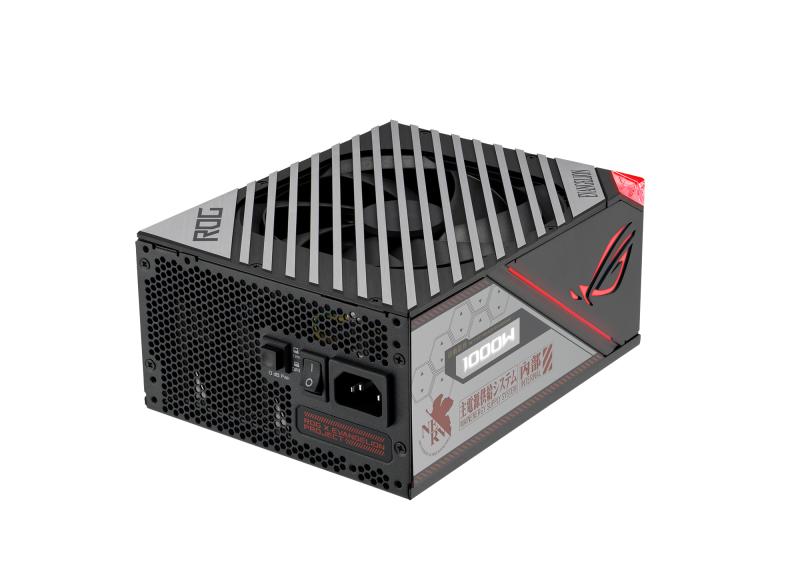

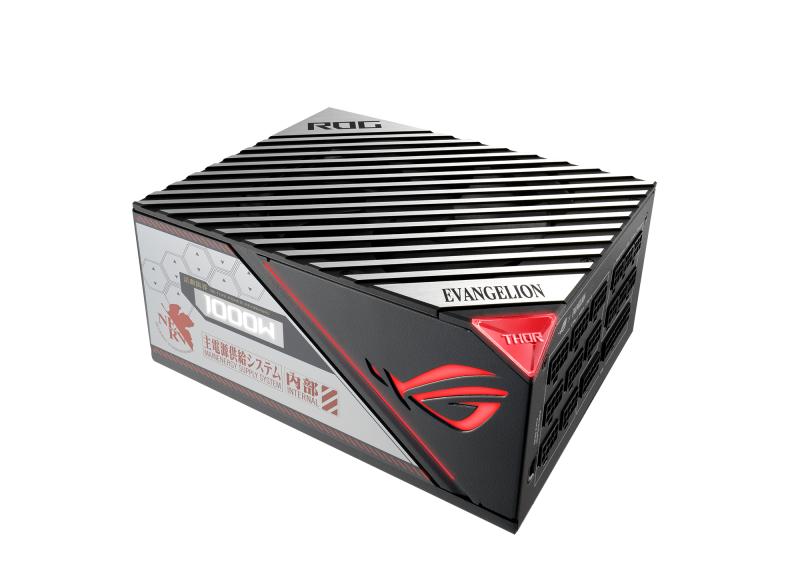

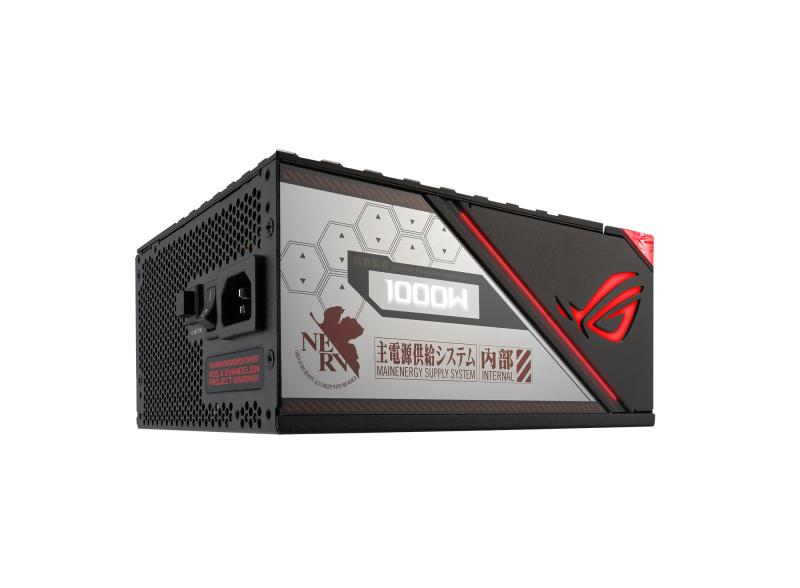

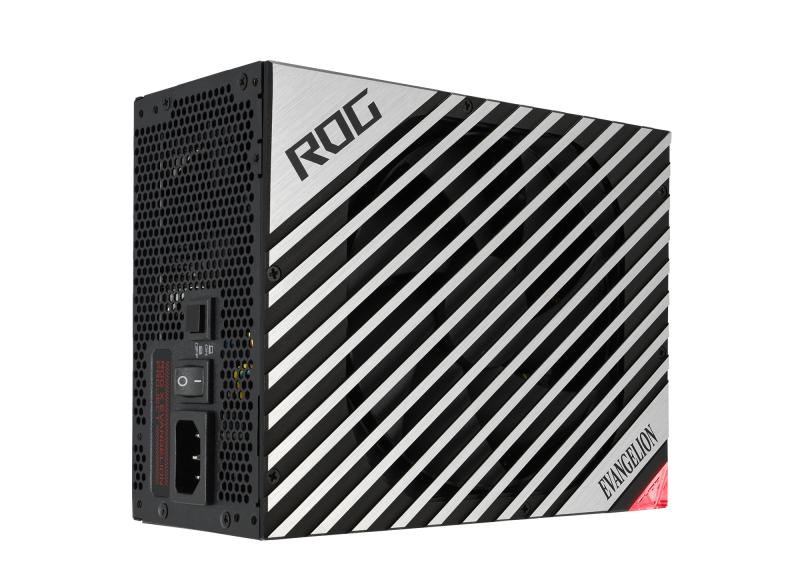

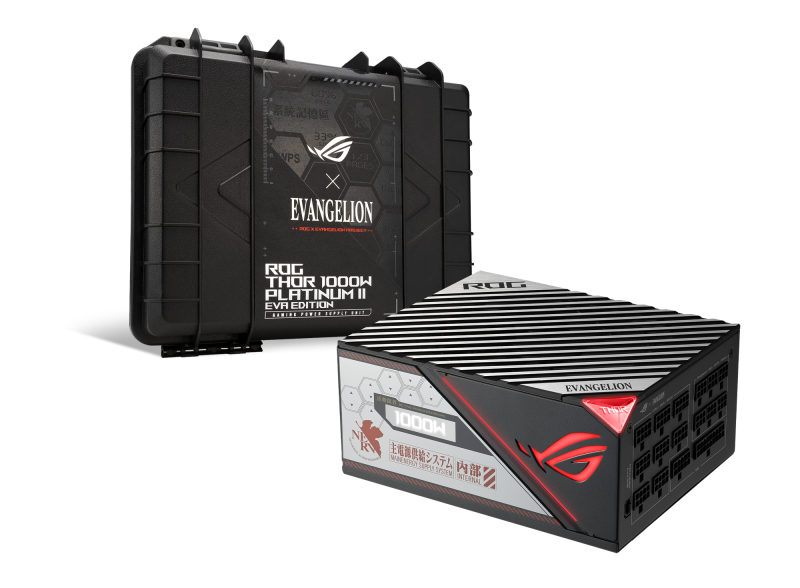

Sursa ASUS ROG Thor 1000W Platinum II EVA Edition, 80Plus Platinum, ARGB
| PSU Type | ATX |
|---|---|
| Compliance certificates | RoHS |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Package depth | 287 mm |
| Package weight | 4.9 kg |
| AC input voltage | 100 – 240 V |
| Package height | 135 mm |
| Illumination | Yes |
| Height | 86 mm |
| Weight | 2.35 kg |
| Depth | 150 mm |
| Width | 190 mm |
| Conectivitate | Full – Modular |
| Iluminare RGB | Da |
| Certificare 80 Plus | 80 PLUS Platinum |
| Motherboard power connector | 20+4 pin ATX |
| EPS power connector (4+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Power supply unit (PSU) form factor | ATX |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Motherboard power cable length | 61 cm |
| Cabling type | Fully-Modular |
| Silent mode | Yes |
| Number of SATA power connectors | 12 |
| SATA power cable length | 120,400 mm |
| CPU power cable length | 65 cm |
| Fan diameter | 13.5 cm |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Total power | 1000 W |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 125 W |
| Max output current (+12V) | 83 A |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Peripheral (Molex) power cable length | 120,450 mm |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power cable length | 67.5 cm |
| Certification | Cybenetics Noise Level Certification A+ |
| Package width | 339 mm |
| PSU-Power | 1000 W |
| PFC | Active |
| Producator | ASUS |
| Garantie | 120 |
