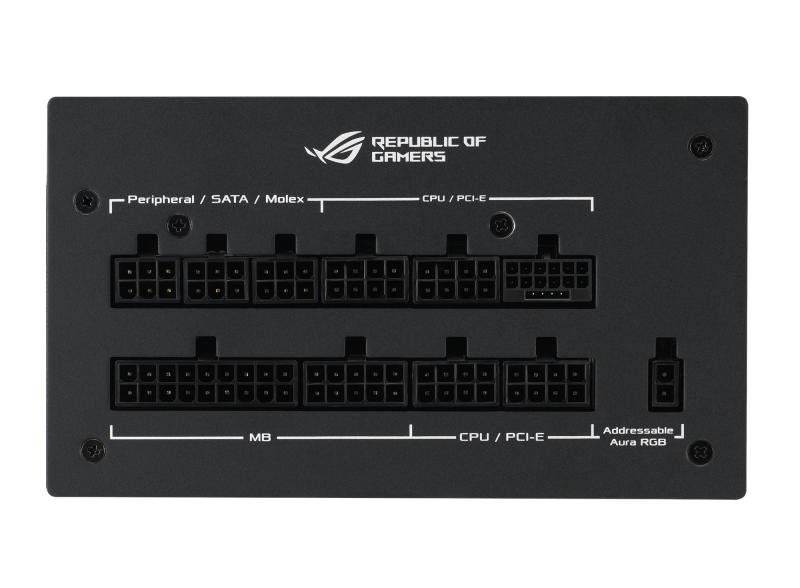

SURSA ASUS ROG STRIX 1200W 80+ GOLD Intel Form Factor ATX12V ATX 3.0 Yes Dimensions 180 x 150 x 86 mm Efficiency 80Plus Gold Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 22A 22A 100A 0.3A 3A Combined Load 120W 120W 1200W 3.6W 15W Total Output 1200W Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4 Package Contents Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (700mm) PCI-E 1-to-1 Cable x 2 (700mm) PCI-E 1-to-2 Cable x 1 (700mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) Addressable RGB Cable x 1 (800mm) User Manual x 1 Weight 3.23 kg (single PSU) AURA SYNC ARGB 0dB Fan Button Yes Cybenetics Noise Level Certification A+
| PSU Type | ATX |
|---|---|
| Manual | Yes |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Purpose | PC |
| Package weight | 3.73 kg |
| AC input voltage | 100 – 240 V |
| Package depth | 242 mm |
| Illumination | Yes |
| Height | 86 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Width | 180 mm |
| Depth | 150 mm |
| Conectivitate | Full – Modular |
| Iluminare RGB | Da |
| Certificare 80 Plus | 80 PLUS Gold |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Power supply unit (PSU) form factor | ATX |
| Combined power (+5Vsb) | 15 W |
| Max output current (+5Vsb) | 3 A |
| Motherboard power cable length | 60 cm |
| Package height | 129 mm |
| Cabling type | Fully-Modular |
| ATX version | 3.0 |
| Silent mode | Yes |
| 80 PLUS certification | 80 PLUS Gold |
| Number of SATA power connectors | 5 |
| PCI Express power cable length | 70 cm |
| Power protection features | Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage |
| CPU power cable length | 65 cm |
| Fan diameter | 13.5 cm |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Bearing technology | Ball bearing |
| Total power | 1200 W |
| Combined power (+12V) | 1200 W |
| Max output current (+12V) | 100 A |
| PCI Express power connectors (6+2 pin) | 4 |
| Efficiency | 80% |
| SATA power cable length | 400,520,640 mm |
| Peripheral (Molex) power cable length | 150,300,400,550 mm |
| Weight | 3.23 kg |
| Package width | 386 mm |
| PSU-Power | 1200 W |
| PFC | Active |
| Producator | ASUS |
| Garantie | 120 |
