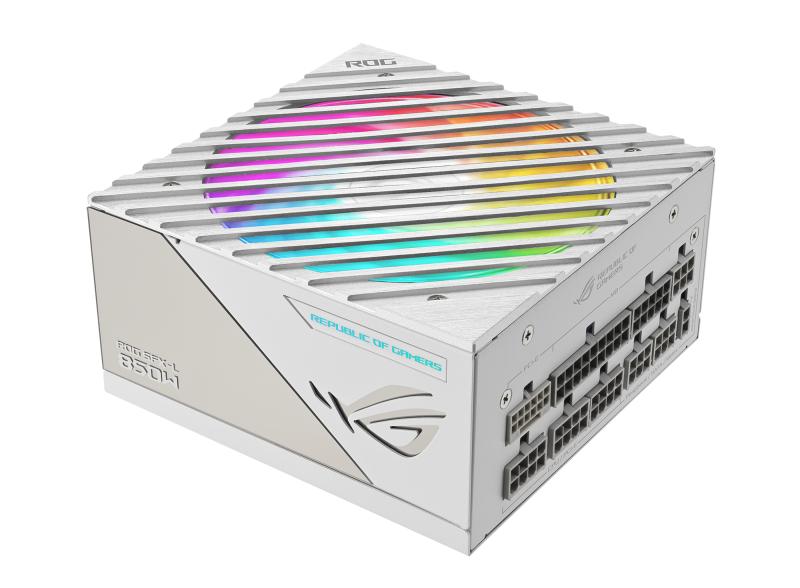

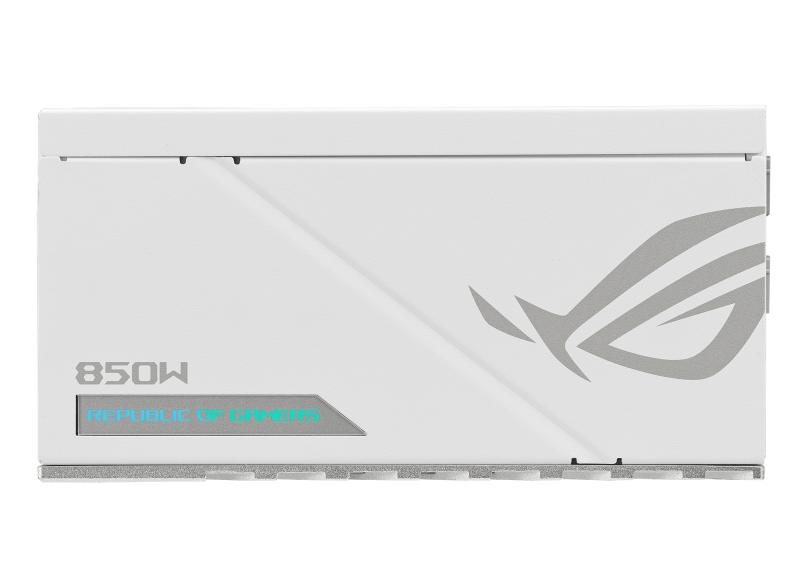

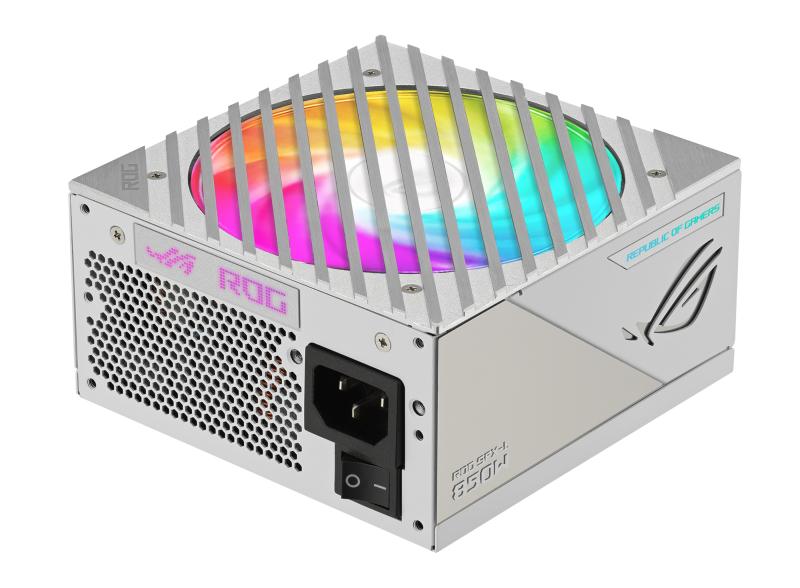

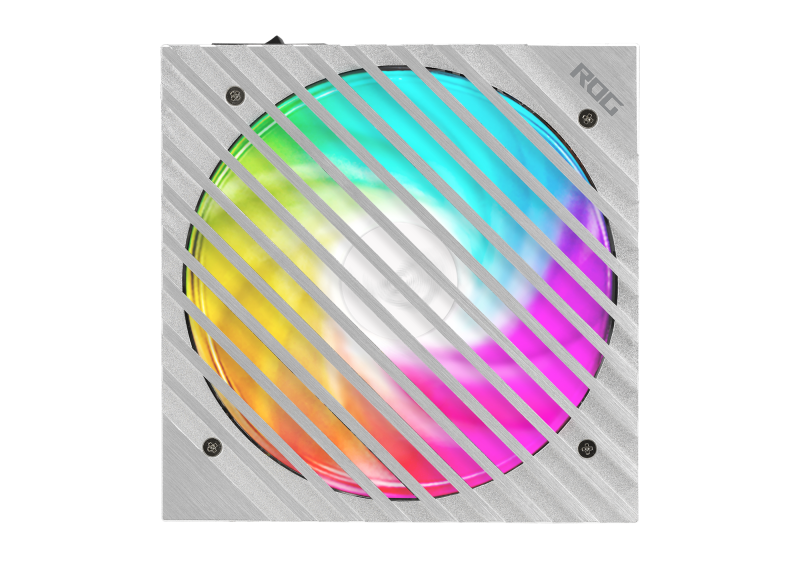

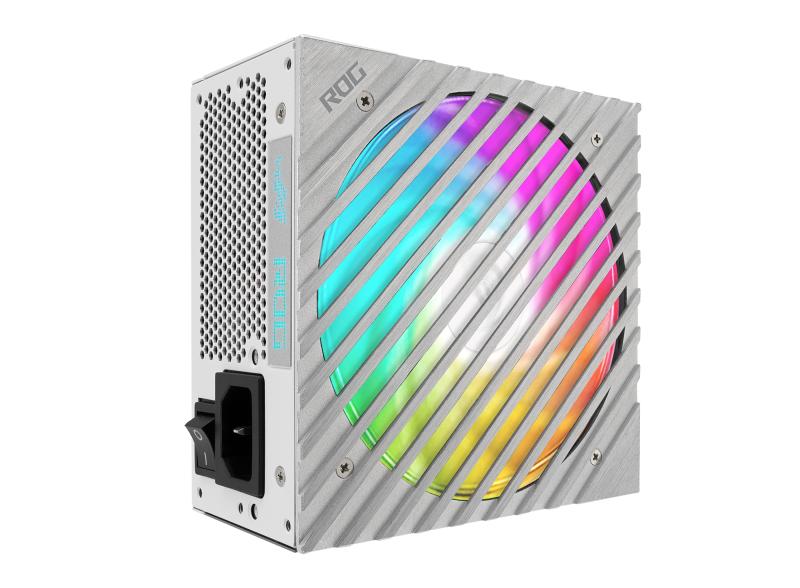

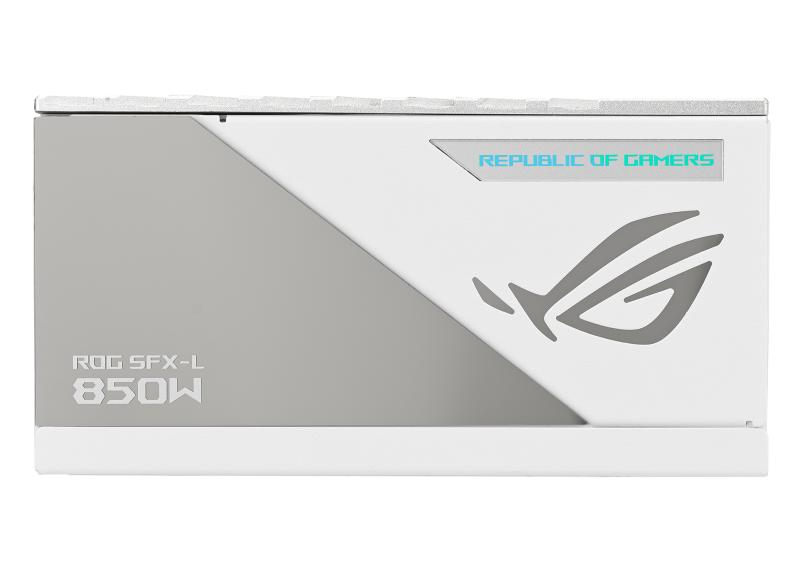

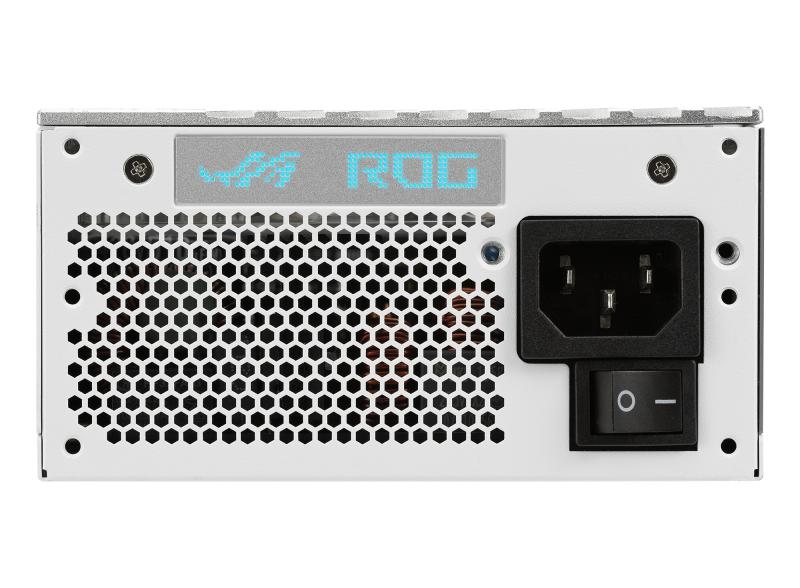

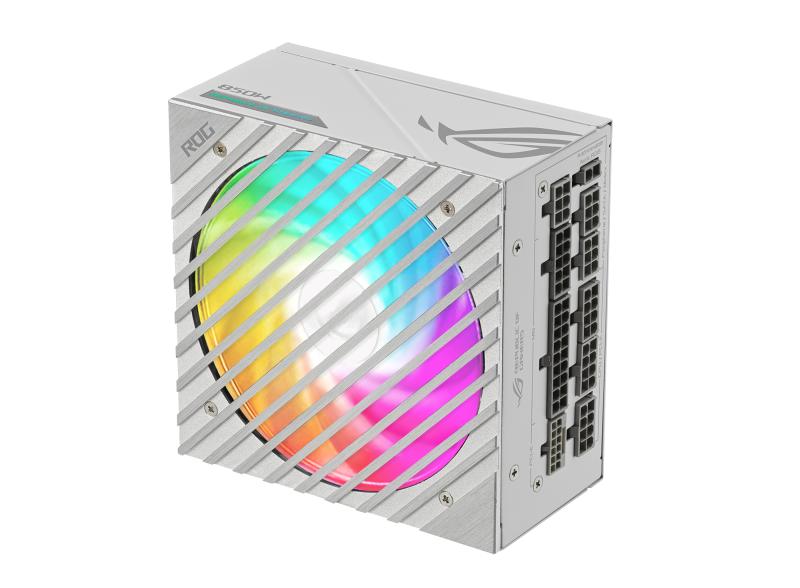

Sursa ASUS ROG LOKI 850W 80+Platinum Intel Form Factor SFX-L ATX 3.0 Yes Dimensions 125 x 125 x 63.5 mm Efficiency 80Plus Platinum Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 20A 20A 70.8A 0.8A 2.5A Combined Load 110W 110W 850W 9.6W 12.5W Total Output 850W Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 3 SATA x 6 PERIPHERAL x 4 Package Contents Power Cord x 1 Motherboard Power Cable x 1 (450mm) CPU Cable x 2 (550mm) PCI-E Gen 5 16-pin Cable x 1 (450mm) PCI-E 1-to-1 Cable x 1 (450mm) PCI- E 1-to-2 Cable x 1 (450mm) SATA 1-to-3 Cable x 2 (300+200+100mm) Peripheral 1-to-4 Cable x 1 (300+100+100+100mm) Addressable RGB Cable x 1 (800mm) User Manual x 1 ATX to SFX adapter bracket x 1 Weight 1.815kg (single PSU) AURA SYNC ARGB 0dB Fan Button No Cybenetics Noise Level Certification A
| Compliance certificates | RoHS |
|---|---|
| Product colour | White |
| Package height | 100 mm |
| Depth | 125 mm |
| Width | 125 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Purpose | PC |
| Weight | 1.81 kg |
| 80 PLUS certification | 80 PLUS Platinum |
| Package weight | 2.5 kg |
| Package depth | 190 mm |
| AC input voltage | 100 – 240 V |
| Illumination | Yes |
| Fan diameter | 12 cm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Package width | 285 mm |
| PSU Type | SFX-L |
| Conectivitate | Full – Modular |
| Iluminare RGB | Da |
| Certificare 80 Plus | 80 PLUS Platinum |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+5Vsb) | 2.5 A |
| Number of SATA power connectors | 6 |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| Combined power (+3.3V) | 110 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| CPU power cable length | 55 cm |
| Combined power (+5V) | 110 W |
| Power protection features | Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage |
| PCI Express power connectors (6+2 pin) | 3 |
| Supported motherboard form factors | ATX |
| Total power | 850 W |
| Max output current (+12V) | 70.8 A |
| Combined power (+12V) | 850 W |
| Bearing technology | Ball bearing |
| Peripheral (Molex) power cable length | 600 mm |
| Height | 63.5 mm |
| PCI Express power cable length | 45 cm |
| Motherboard power cable length | 45 cm |
| Power supply unit (PSU) form factor | SFX-L |
| SATA power cable length | 600 mm |
| PSU-Power | 850 W |
| PFC | Active |
| Producator | ASUS |
| Garantie | 120 |
