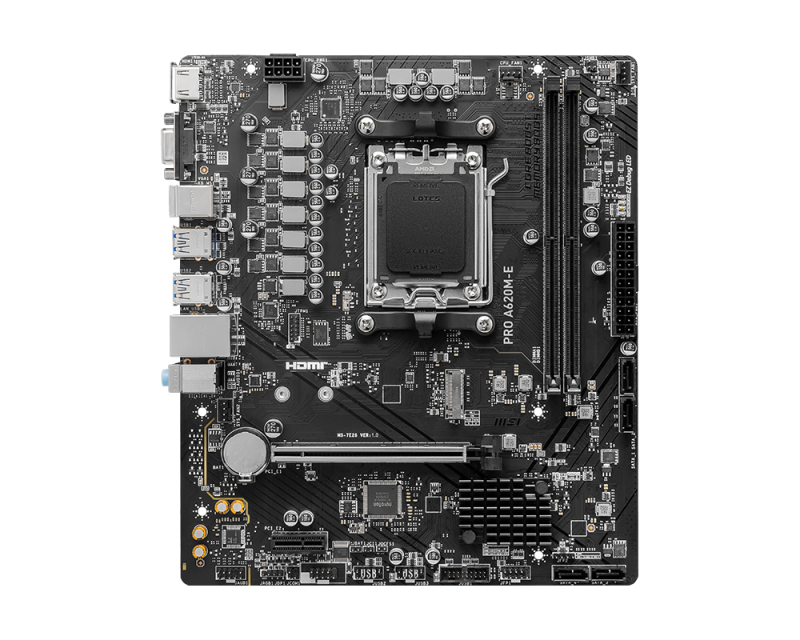

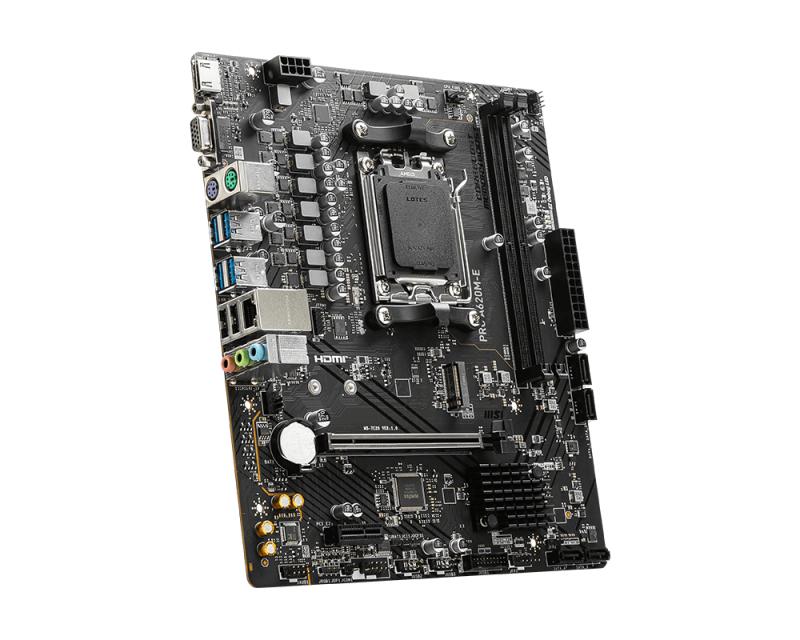

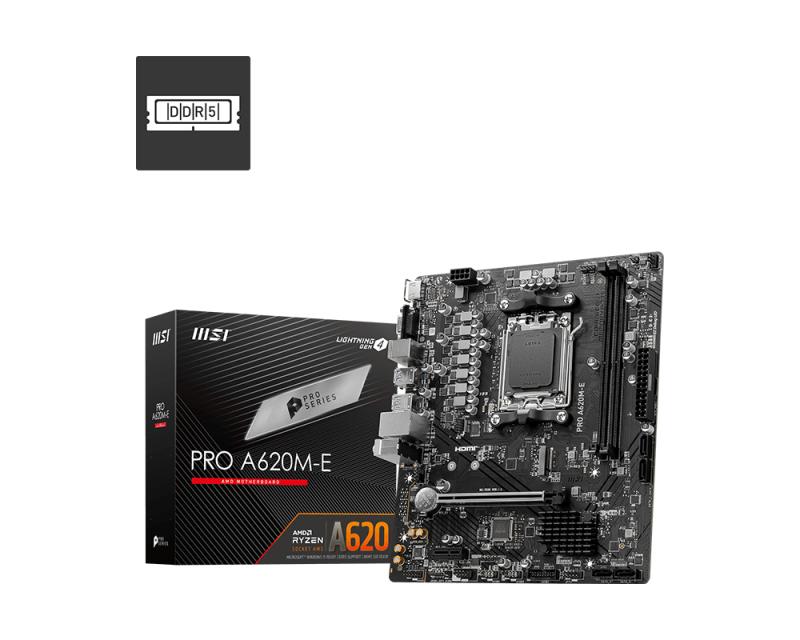

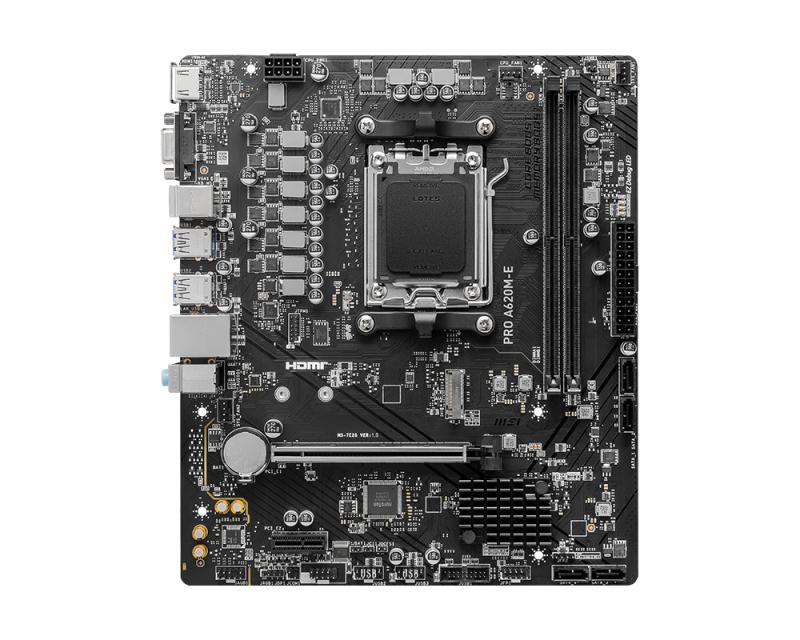

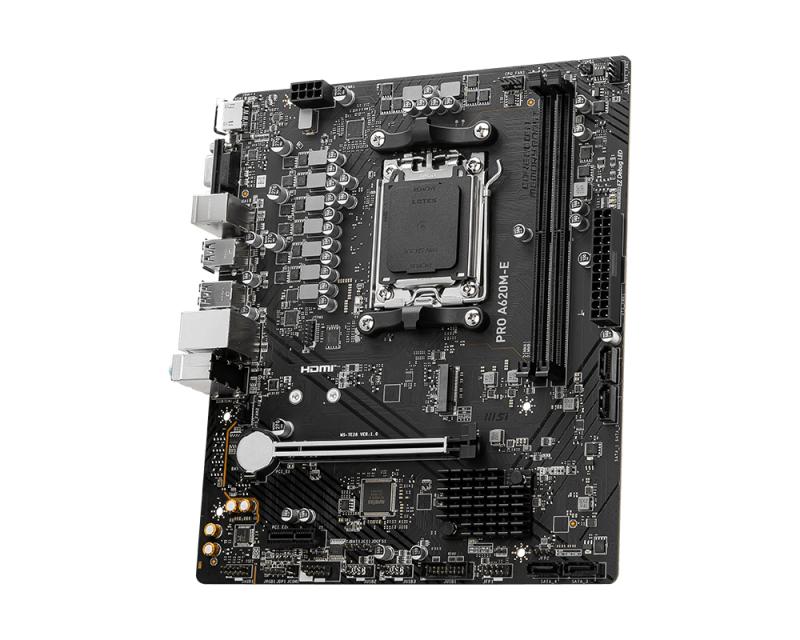

Placa de bază MSI PRO A620M-E AM5
Producator:
Msi
Disponibilitate:
Stoc epuizat
580,99 lei
Stoc epuizat
Placa de baza MSI PRO A620M-E AM5, 2xDDR5, 1xHDMI 1xVGA, 1xPCIE x16 1xPCIE 1x, 1xM.2, 4xSATA 6gb/s
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | VGA/DVI/HDMI |
| Wi-Fi | No |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| Cooling type | Active |
| USB connector type | USB Type-A |
| Ethernet interface type | Gigabit Ethernet |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 96 GB |
| Processor manufacturer | AMD |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Line-in | Yes |
| PCI Express x16 slots | 1 |
| Audio Chip | Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| On-board graphics card | No |
| Number of memory slots | 2 |
| Supported storage drive types | HDD & SSD |
| LAN controller | Realtek RTL8111H |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Maximum resolution | 3840 x 2160 pixels |
| COM ports quantity | 1 |
| Number of M.2 (M) slots | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PCI Express x1 slots | 1 |
| Model Chipset | A620 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket AM5 |
| Tip Memorie: | DDR5 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 96 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| BLUETOOTH | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 1 |
| RJ-45 LAN | 1 |
| Memory slots type | DIMM |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| mSATA ports quantity | 0 |
| Supported memory types | DDR5-SDRAM |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Maximum number of SMP processors | 1 |
| Discrete graphics support | Yes |
| Total number of SATA connectors | 4 |
| ECC сompatibility | Non-ECC |
| Number of COM connectors | 1 |
| RAID levels | 0, 1, 10 |
| Chassis intrusion connector | Yes |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Number of storage drives supported | 5 |
| Number of chassis fan connectors | 1 |
| USB 2.0 ports quantity | 6 |
| PS/2 ports quantity | 2 |
| Compatible processor series | AMD Ryzen™ 7 |
| Power fan connector | Yes |
| AMD Opteron series | 7000 |
| Supported memory clock speeds | 6000 MHz |
| Supported storage drive interfaces | M.2, PCI Express, SATA |
| USB 2.0 connectors | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 6 |
| Motherboard chipset | AMD A620 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Cables included | SATA |
| Power source type | ATX |
| Width | 211 mm |
| Depth | 243.8 mm |
| Producator | MSI |
| Garantie | 36 |
