Placa de baza MSI MAG B760 TOMAHAWK WIFI LGA1700 SPECIFICATIONS Model Name MAG B760 TOMAHAWK WIFI CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B760 Chipset Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 3.0 x16 slot, 1x PCIe 4.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5-7000+ MHz (OC) Storage 3x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gb/s ports USB ports 1x USB 3.2 Gen 2×2 20Gbps (Type-C), 5x USB 3.2 Gen 2 10Gbps (Type-A + Type-C), 2x USB 3.2 Gen 1 5Gbps (Type-A), 8x USB 2.0 LAN Realtek® RTL8125BG 2.5Gbps LAN Wireless / Bluetooth Intel® Wi-Fi 6E, Bluetooth 5.3 Audio 8-Channel (7.1) HD Audio with Audio Boost
Placi de baza

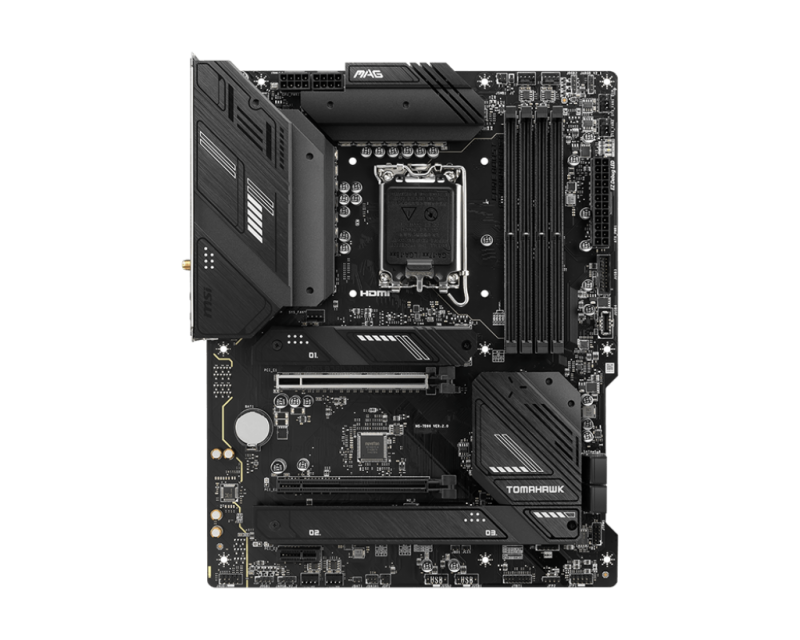

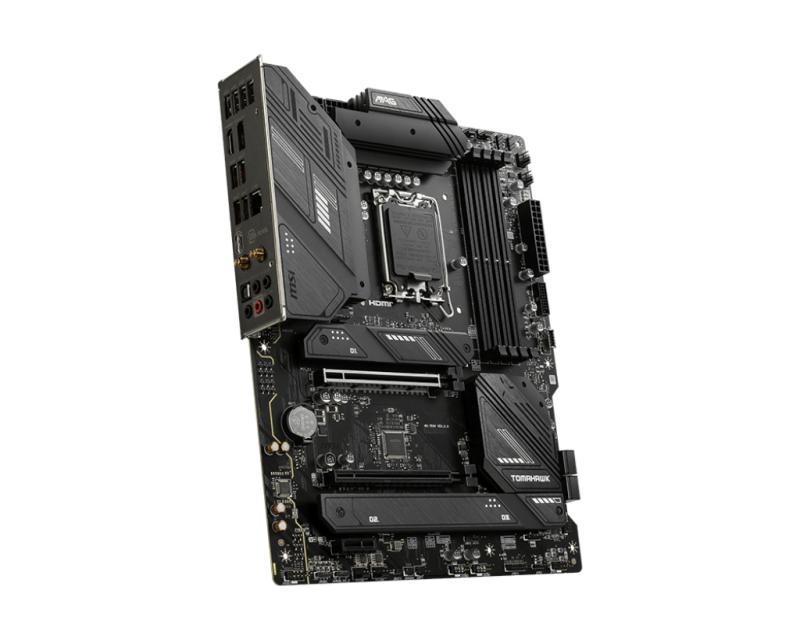

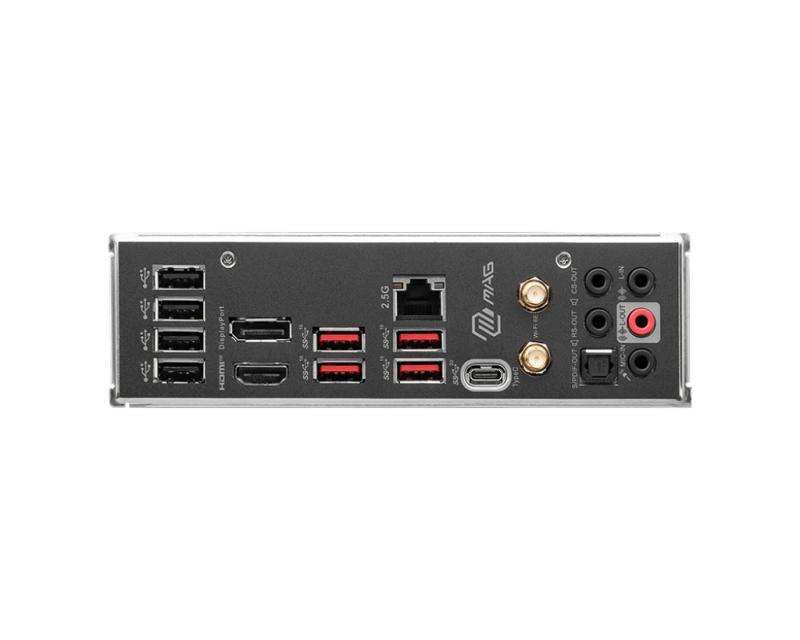

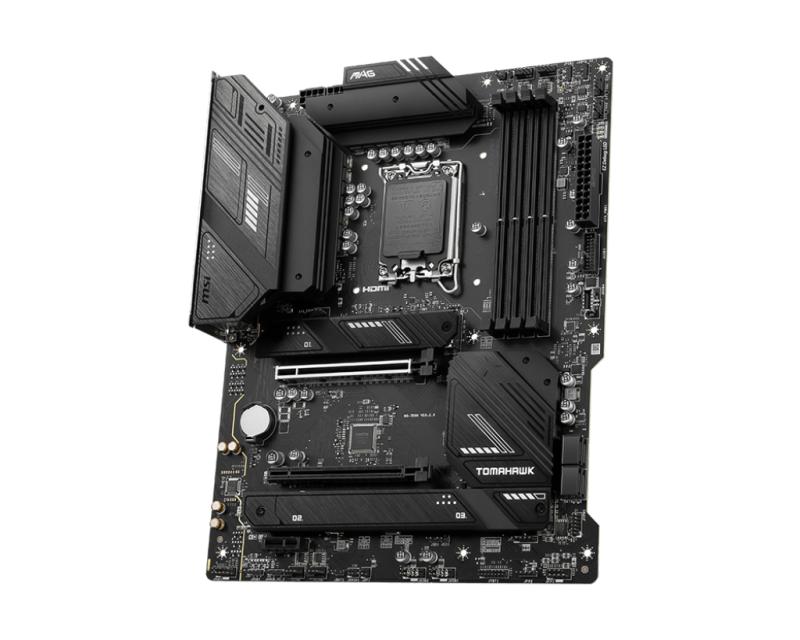

Placa de bază MSI MAG B760 TOMAHAWK WIFI DDR5 LGA1700
Producator:
Msi
Disponibilitate:
Stoc epuizat
1.515,98 lei
Stoc epuizat
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| Windows operating systems supported | Windows 10, Windows 11 |
| DisplayPort version | 1.4 |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 GB |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Audio Chip | Realtek ALC897 |
| On-board graphics card | No |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Model Chipset | B760 |
| Gaming | Da |
| Format | ATX |
| Soclu Procesor | Socket 1700 |
| Tip Memorie: | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | N/A |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| BLUETOOTH | Da |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 3 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported storage drive interfaces | M.2, SATA III |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| mSATA ports quantity | 0 |
| Supported memory types | DDR5-SDRAM |
| RAID levels | 0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Number of M.2 (M) slots | 3 |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| ECC сompatibility | Non-ECC |
| S/PDIF out connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 4 |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| PCI Express x16 slots | 2 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
| Supported memory clock speeds | 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz |
| Bluetooth version | 5.3 |
| Power source type | ATX |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| Producator | MSI |
| Garantie | 36 |
