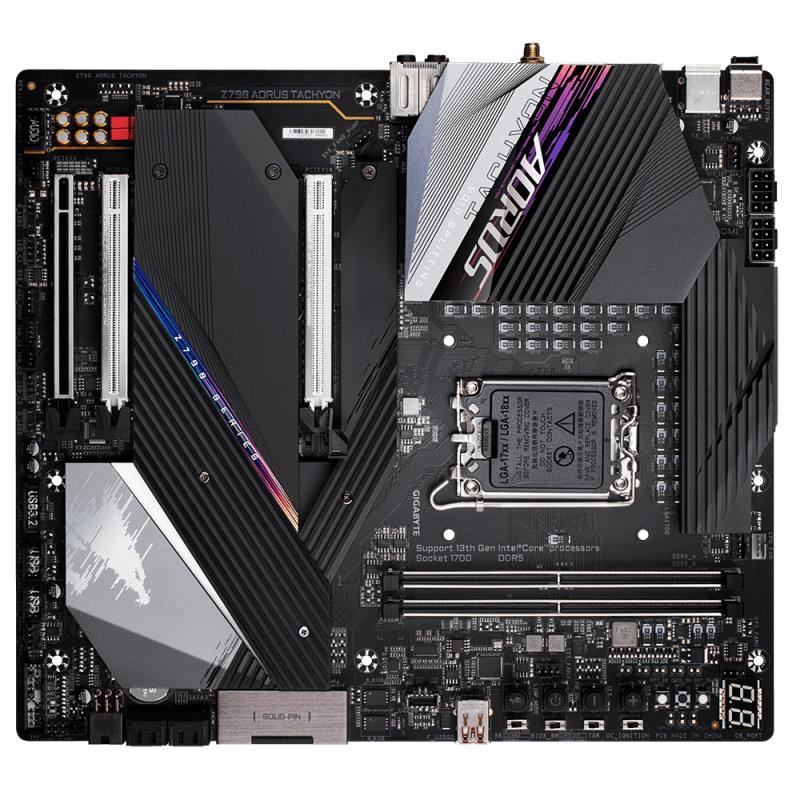

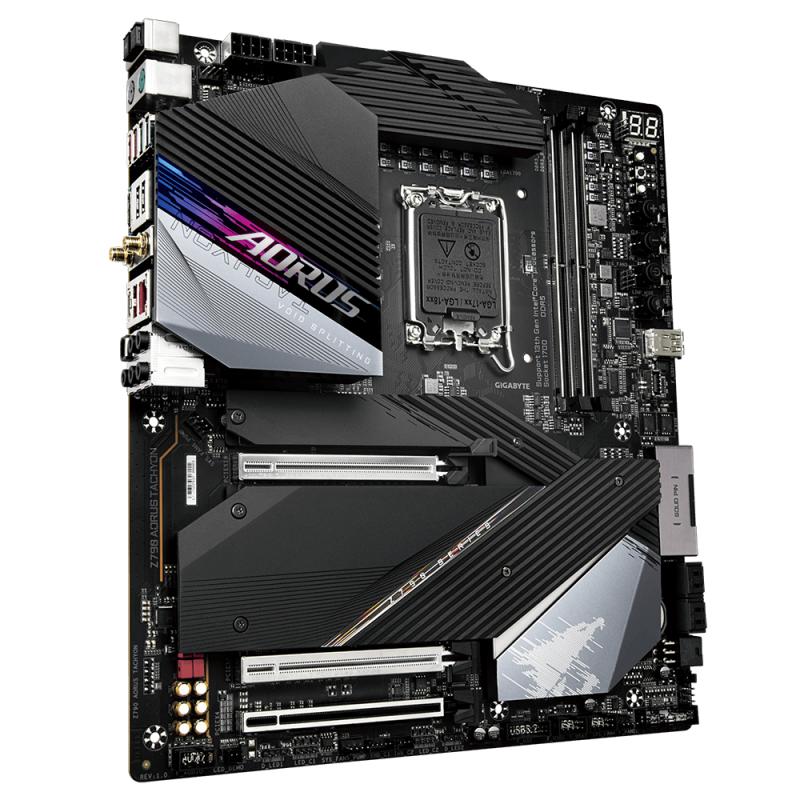

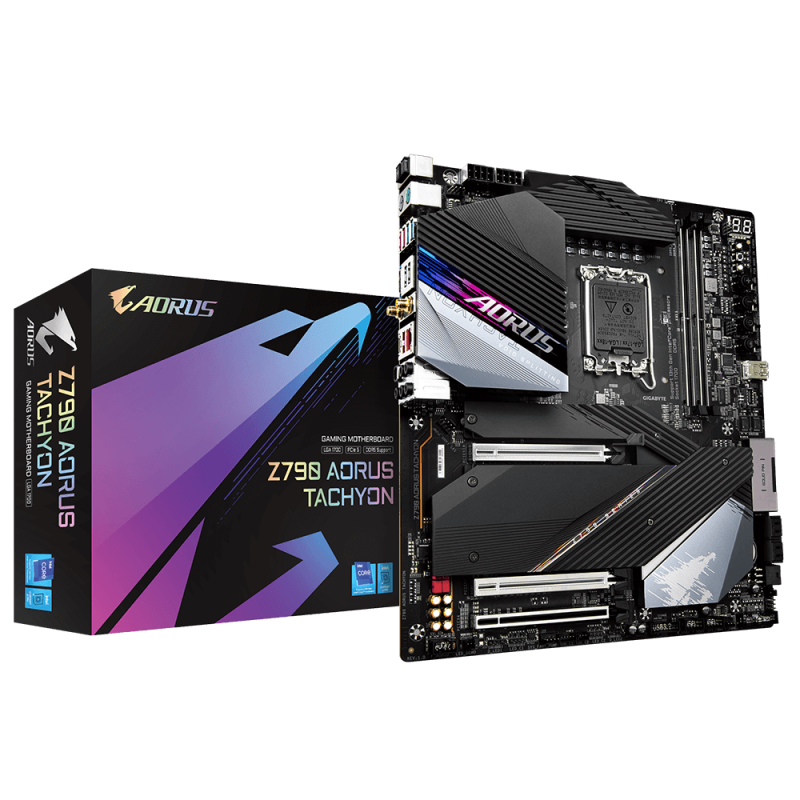

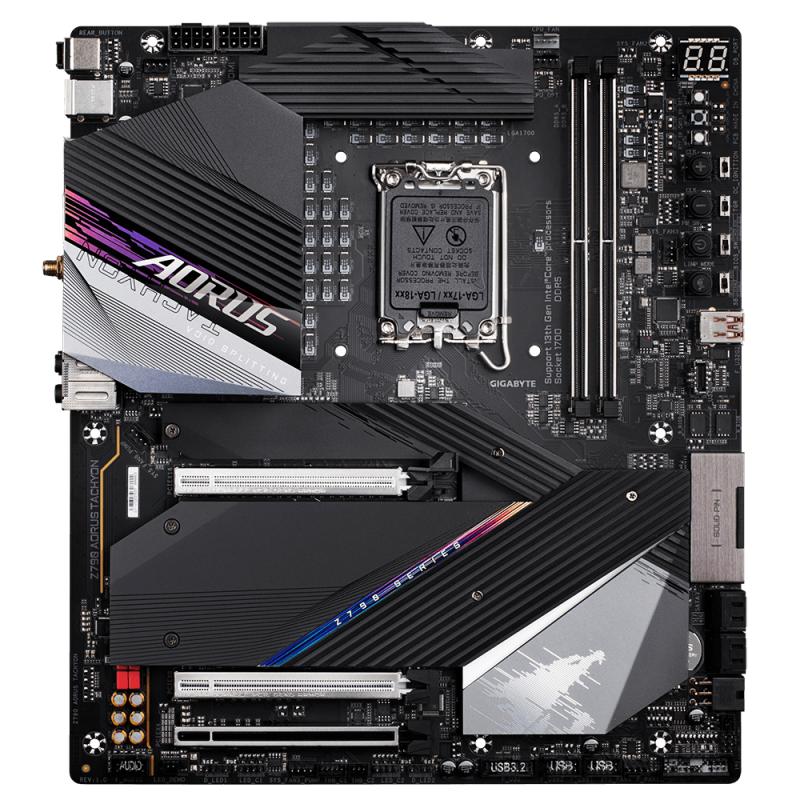

Placa de bază Gigabyte Z790 AORUS TACHYON LGA1700
Stoc epuizat
5.669,00 lei
Stoc epuizat
Placa de baza Gigabyte Z790 AORUS TACHYON, 2x DDR5 8333MHz, 1x HDMI, 3x PCIe x16, 2x M.2, WIFI 6E, 2.5Gbps LAN, E-ATX
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI |
| Wi-Fi | Yes |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| USB connector type | USB Type-A, USB Type-C |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Maximum internal memory | 64 GB |
| On-board graphics card | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 0 |
| Graphics card family | Intel |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Audio output channels | 7.1 channels |
| Number of memory slots | 2 |
| Supported storage drive types | HDD & SSD |
| S/PDIF out port | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| HDCP | Yes |
| Digital audio optical out | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Maximum resolution | 4096 x 2160 pixels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Model Chipset | Z790 |
| Gaming | Nu |
| Format | E-ATX |
| Soclu Procesor | Socket 1700 |
| Tip Memorie: | DDR5 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 64 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Da |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Supported memory types | DDR5-SDRAM |
| ECC сompatibility | ECC & Non-ECC |
| RAID levels | 0, 1, 5, 10 |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset family | Intel |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Thunderbolt headers | 2 |
| 12V power connector | Yes |
| Motherboard chipset | Intel Z790 Express |
| Clear CMOS button | Yes |
| S/PDIF out connector | Yes |
| Number of storage drives supported | 8 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 slots | 3 |
| PS/2 ports quantity | 2 |
| Graphics card | HD Graphics |
| Motherboard form factor | Extended ATX |
| Audio Chip | Realtek ALC1220-VB |
| PC health monitoring | Fan, Noise, Temperature, Voltage, Water cooling |
| Power fan connector | Yes |
| BIOS memory size | 512 Mbit |
| Supported memory module capacities | 32GB |
| Supported memory clock speeds | 8333 MHz |
| Supported storage drive interfaces | M.2, NVMe, PCI Express 4.0, SATA |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Serial port headers | 4 |
| BLUETOOTH | Yes |
| Bluetooth version | 5.3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Cables included | SATA |
| Power source type | ATX |
| Headphone outputs | 5 |
| Depth | 270 mm |
| Width | 30.5 mm |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Producator | GIGABYTE |
| Garantie | 36 |
