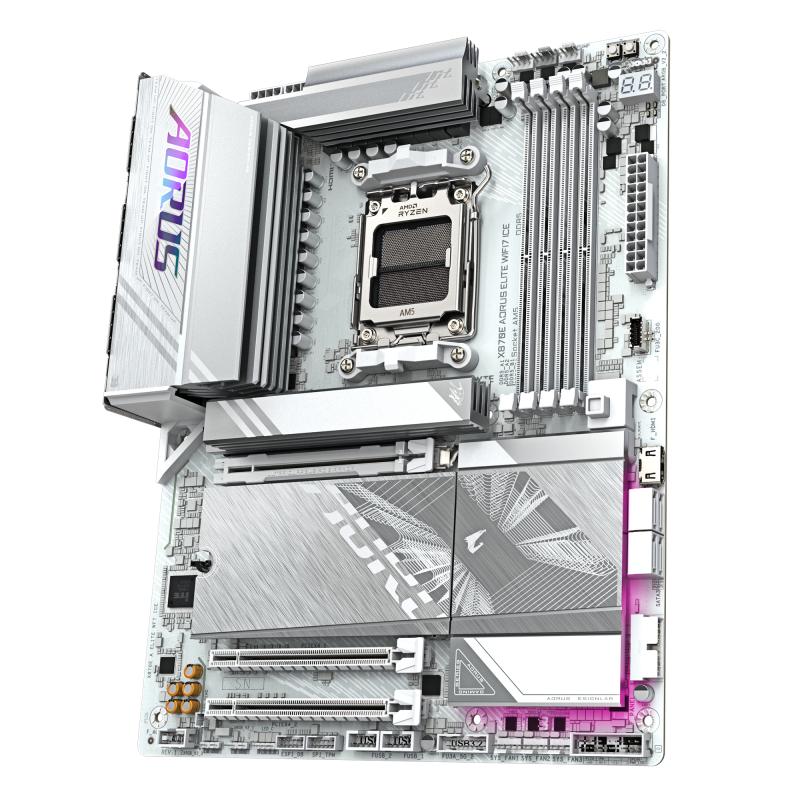

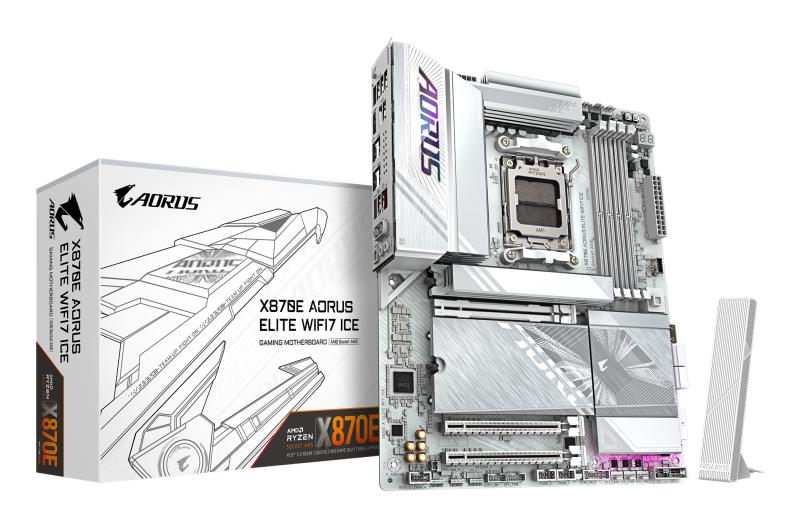

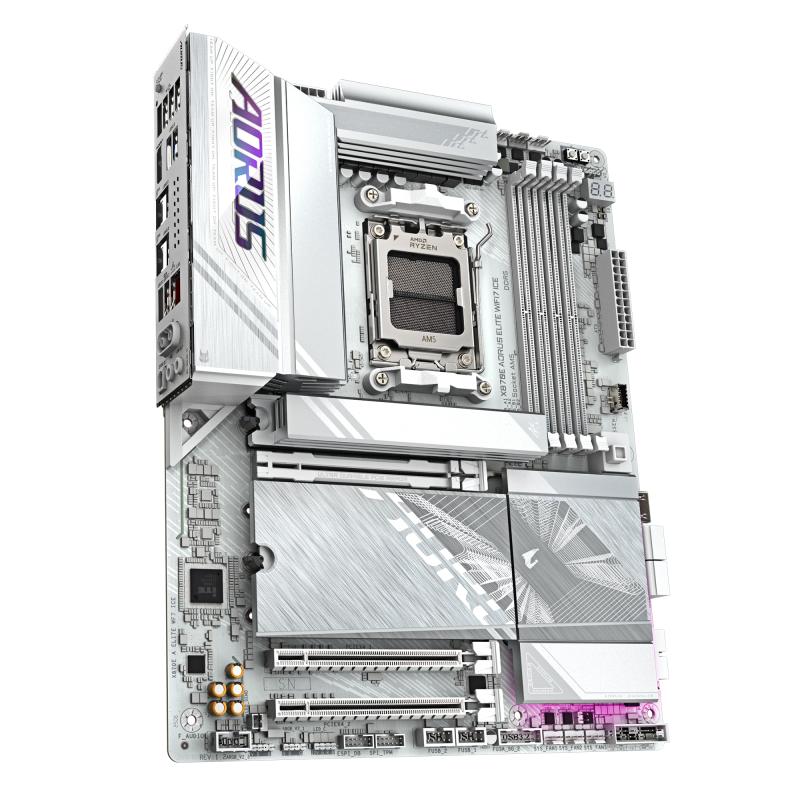

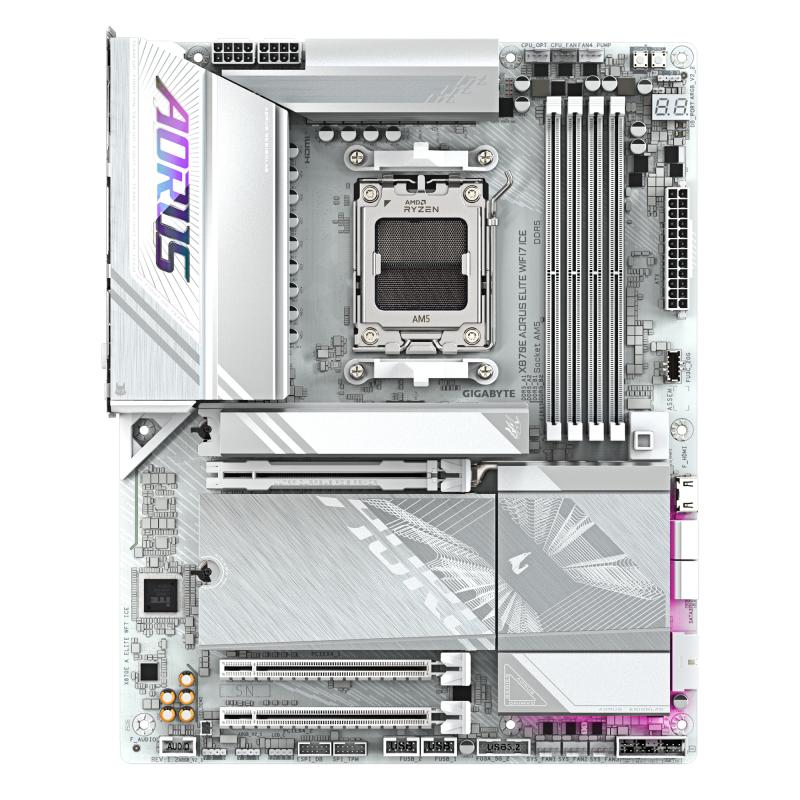

Placa de Baza GIGABYTE X870E AORUS ELITE WIFI7 ICE AM5,

SKU: X870E A ELITE WF7 ICE
Producator: Gigabyte
Disponibilitate:

8 în stoc


2.261,99 lei 2.676,99 lei

8 în stoc

Placa de Baza GIGABYTE X870E AORUS ELITE WIFI7 ICE AM5, 4x DDR5, 2x USB4 1x HDMI 1x front HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 4x M.2, 4x SATA 6GB/s, ATX

SKU: X870E A ELITE WF7 ICE Categorie:
PCI

0

Serial-or-Paralel

No/No

Video-Connection

HDMI

Wi-Fi

Yes

USB3

4-8

Onboard-CPU

No

RAID support

Yes

Component for

PC

Product colour

White

DisplayPort version

1.4

Memory channels

Dual-channel

Ethernet LAN

Yes

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI version

2.1

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Headphone outputs

1

Processor manufacturer

AMD

Wi-Fi standards

Wi-Fi 7 (802.11be)

Microphone in

Yes

Width

305 mm

Depth

244 mm

Bluetooth version

5.4

Products per shipping (inner) case

1 pc(s)

Batteries included

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

PCI Express x16 (Gen 3.x) slots

1

Audio output channels

7.1 channels

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

On-board graphics card

No

Supported storage drive types

HDD & SSD

Cooling type

Passive

S/PDIF out port

Yes

HDCP

Yes

Screws included

Yes

Digital audio optical out

1

Package weight

2.64 kg

VGA (D-Sub) ports quantity

0

Parallel processing technology support

Not supported

DVI-D ports quantity

0

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

Model Chipset

X870E

Gaming

Da

Format

ATX

Soclu Procesor

Socket AM5

Tip Memorie:

DDR5

Numar sloturi memorie

4

Memorie maxima

256 GB

Tip slot interfata grafica

N/A

Chipset audio integrat

Realtek

Canale audio

7.1

Wireless

Da

BLUETOOTH

Da

HDMI

Da

Thunderbolt

Nu

Sloturi M.2

4

RJ-45 LAN

1

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Motherboard chipset family

AMD

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

Realtek RTL8922AE

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Windows operating systems supported

Windows 11 x64

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

3rd M.2 largest key size

22110

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Package height

80 mm

Height

35 mm

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

ECC сompatibility

Non-ECC

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of storage drives supported

8

Number of M.2 (M) slots

4

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

4th M.2 highest PCI Express generation

4.0

USB4 Gen 2x2 ports quantity

2

2nd M.2 highest PCI Express generation

5.0

3rd M.2 highest PCI Express generation

5.0

4th M.2 largest key size

22110

Package width

345 mm

Audio Chip

Realtek ALC1220-VB

Motherboard chipset

AMD X870E

Package depth

294 mm

Supported storage drive interfaces

M.2, PCI Express 5.0, SATA III

MB-Format

ATX

PCI-Ex1

0

PCI-Ex16

3

RAM-Slots

4

USB Type-C

N/A

MB-Socket

AM5

Supported memory clock speeds

8200,8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz

Weight

2.64 kg

Producator

GIGABYTE
