-13%

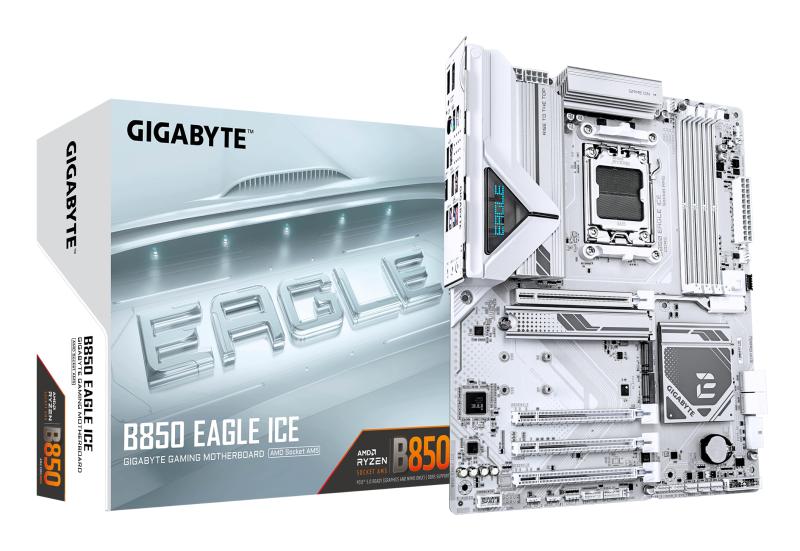

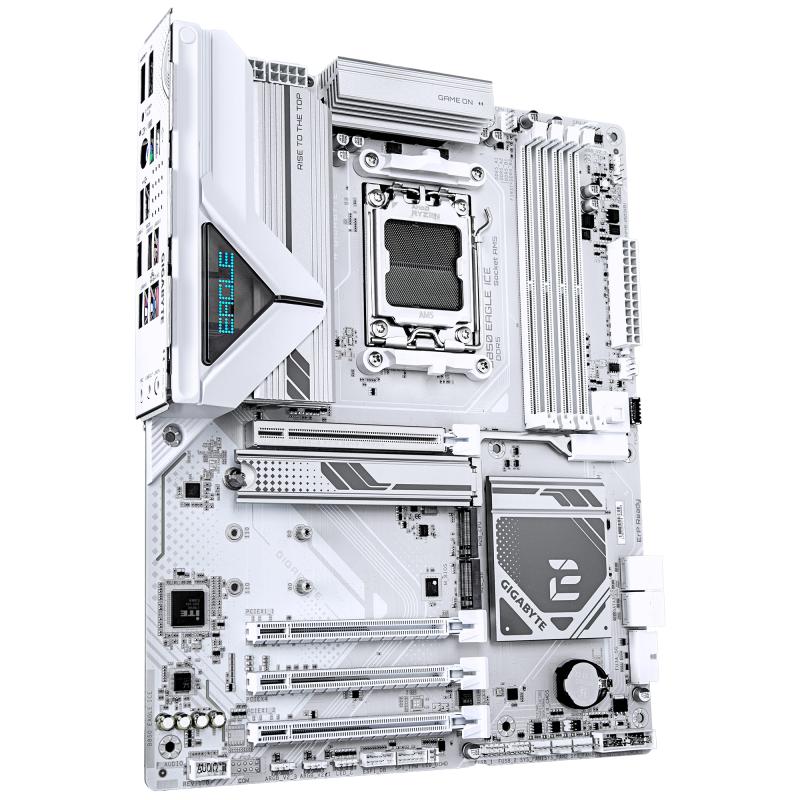

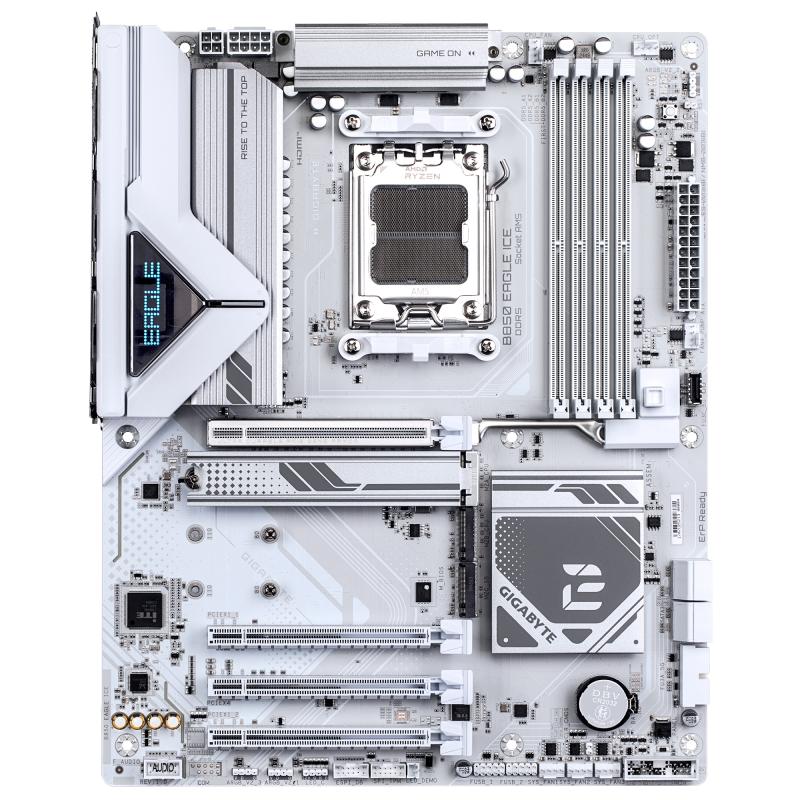

Placa de Baza GIGABYTE B850 EAGLE ICE AM5, 4x DDR5,

SKU: B850 EAGLE ICE
Producator: Gigabyte
Disponibilitate:

7 în stoc


1.353,99 lei 1.551,99 lei

7 în stoc

Placa de Baza GIGABYTE B850 EAGLE ICE AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 2x PCIE 3.0 x16, 3x M.2, 4x SATA 6GB/s, ATX

SKU: B850 EAGLE ICE Categorie:
PCI

0

Serial-or-Paralel

No/No

Video-Connection

HDMI/DP

Wi-Fi

No

USB3

4-8

Onboard-CPU

No

Country of origin

China

RAID support

Yes

Component for

PC

Product colour

White

DisplayPort version

1.4

Memory channels

Dual-channel

Ethernet LAN

Yes

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI version

2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Headphone outputs

1

Processor manufacturer

AMD

Microphone in

Yes

Width

305 mm

Depth

244 mm

Products per shipping (inner) case

1 pc(s)

Batteries included

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Audio output channels

7.1 channels

Line-in

Yes

PCI Express x16 (Gen 5.x) slots

1

Audio Chip

Realtek ALC897

PCI Express x16 (Gen 4.x) slots

1

Supported storage drive types

HDD & SSD

Cooling type

Passive

HDCP

Yes

Screws included

Yes

DisplayPorts quantity

1

VGA (D-Sub) ports quantity

0

Parallel processing technology support

Not supported

DVI-D ports quantity

0

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

Weight

1.65 kg

Model Chipset

B850

Gaming

Nu

Format

ATX

Soclu Procesor

Socket AM5

Tip Memorie:

DDR5

Numar sloturi memorie

4

Memorie maxima

256 GB

Tip slot interfata grafica

N/A

Chipset audio integrat

Realtek

Canale audio

7.1

Wireless

Nu

BLUETOOTH

Nu

HDMI

Da

Thunderbolt

Nu

Sloturi M.2

3

RJ-45 LAN

1

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

PS/2 ports quantity

1

Motherboard chipset family

AMD

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of HDDs supported

4

Number of storage drives supported

7

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

Number of RGB LED pin headers

4

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Windows operating systems supported

Windows 11 x64

Number of M.2 (M) slots

3

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Battery weight

3 g

Lithium weight per battery

0.07 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Height

35 mm

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

12V power connector

Yes

ECC сompatibility

Non-ECC

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

RAID levels

0, 1, 10

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Peripheral (Molex) power connectors (4-pin)

1

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Motherboard chipset

AMD B850

Number of EPS power connectors (8-pin)

1

PCI Express x16 (Gen 3.x) slots

2

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

1st M.2 largest key size

22110

MB-Format

ATX

MB-Socket

1700

PCI-Ex1

0

PCI-Ex16

3

RAM-Slots

2

USB Type-C

N/A

Package weight

1.88 kg

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz

Producator

GIGABYTE

Garantie

36
