-9%

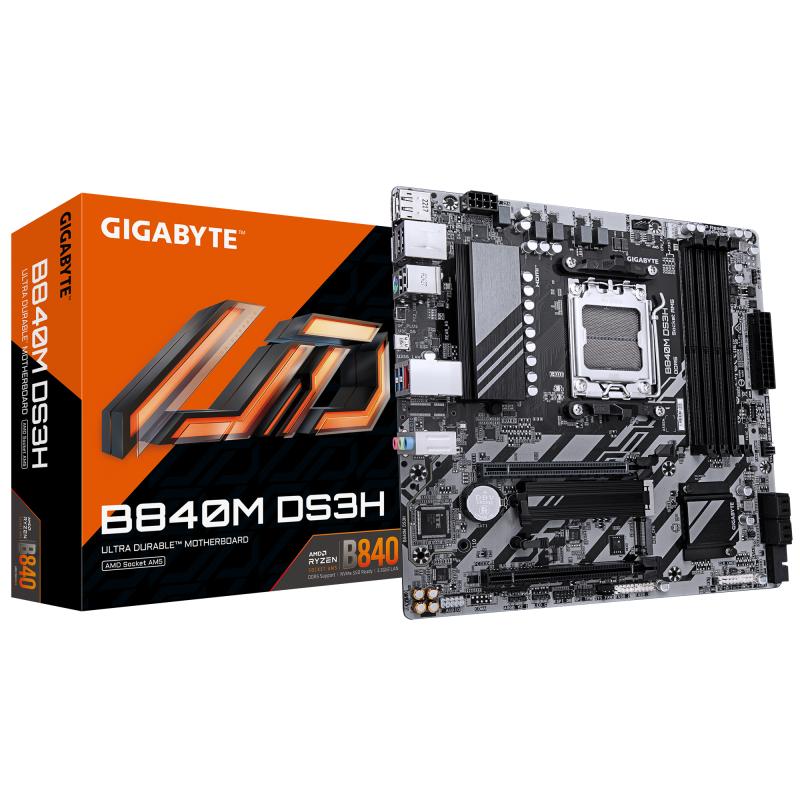

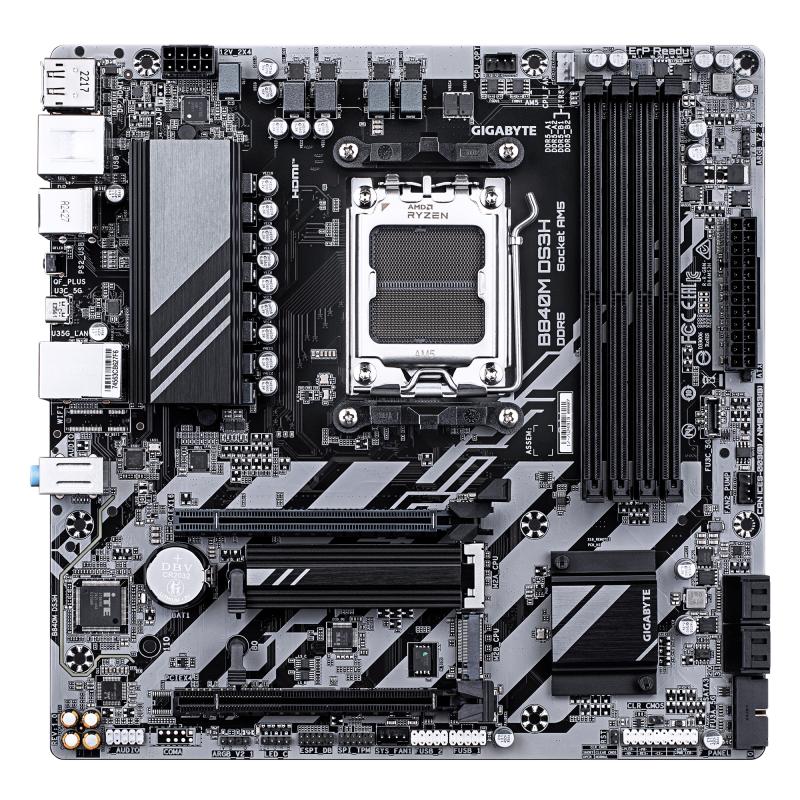

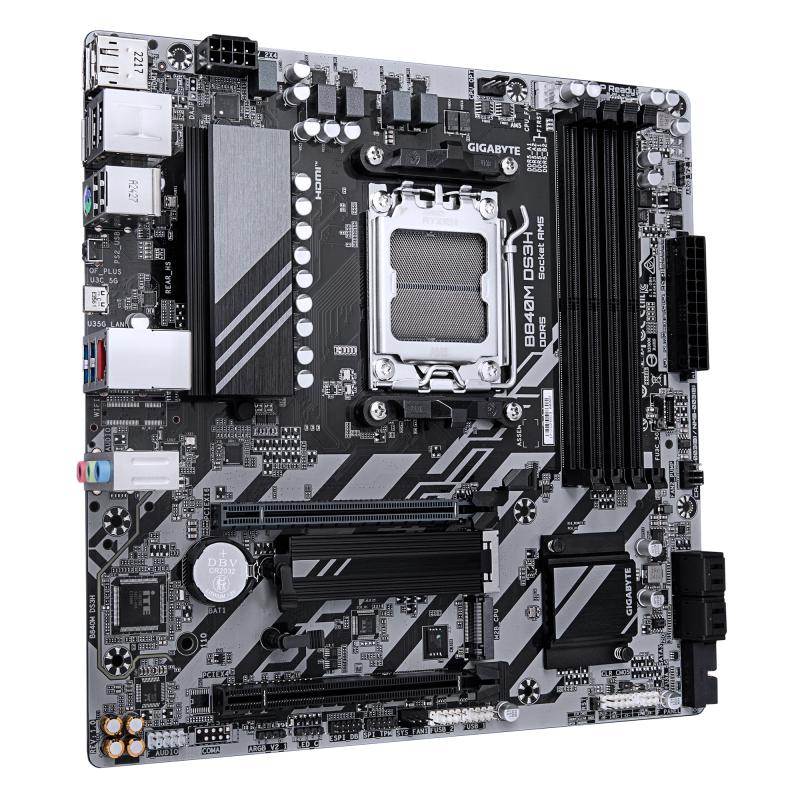

Placa de Baza GIGABYTE B840M DS3H AM5, 4x DDR5, 1x
Placa de Baza GIGABYTE B840M DS3H AM5, 4x DDR5, 1x - imagine 3
Placa de Baza GIGABYTE B840M DS3H AM5, 4x DDR5, 1x - imagine 4
Placa de Baza GIGABYTE B840M DS3H AM5, 4x DDR5, 1x - imagine 5
Placa de Baza GIGABYTE B840M DS3H AM5, 4x DDR5, 1x - imagine 6

Placa de Baza GIGABYTE B840M DS3H AM5, 4x DDR5, 1x

SKU: B840M DS3H
Producator: Gigabyte
Disponibilitate:

10 în stoc
Add to wishlist
Compare

920,99 lei 1.012,99 lei

10 în stoc

Placa de Baza GIGABYTE B840M DS3H AM5, 4x DDR5, 1x HDMI 2x DP, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

SKU: B840M DS3H Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI
Wi-Fi

No
USB3

4-8
Onboard-CPU

No
RAID support

Yes
Component for

PC
Package width

265 mm
DisplayPort version

1.4
Weight

1.05 kg
Package height

54 mm
Memory channels

Dual-channel
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1
Headphone outputs

1
Processor manufacturer

AMD
Microphone in

Yes
Depth

244 mm
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
USB 2.0 ports quantity

4
PCI Express x16 (Gen 3.x) slots

1
Audio output channels

7.1 channels
DisplayPorts quantity

2
Line-in

Yes
Audio Chip

Realtek ALC897
PCI Express x16 (Gen 4.x) slots

1
Supported storage drive types

HDD & SSD
Number of M.2 (M) slots

2
Cooling type

Passive
HDCP

Yes
Screws included

Yes
VGA (D-Sub) ports quantity

0
Parallel processing technology support

Not supported
DVI-D ports quantity

0
DirectX version

12.0
Maximum resolution

4096 x 2160 pixels
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Package depth

265 mm
Model Chipset

B840
Gaming

Nu
Format

Micro-ATX (mATX)
Soclu Procesor

Socket AM5
Tip Memorie:

DDR5
Numar sloturi memorie

4
Memorie maxima

256 GB
Tip slot interfata grafica

N/A
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

2
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
USB 2.0 connectors

2
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Number of chassis fan connectors

2
EPS power connector (8-pin)

Yes
PS/2 ports quantity

1
Motherboard form factor

micro ATX
Motherboard chipset family

AMD
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Clear CMOS jumper

Yes
Width

244 mm
Supported memory types

DDR5-SDRAM
Maximum internal memory

256 GB
Maximum internal memory per slot

64 GB
Number of HDDs supported

4
Front panel connector

Yes
Number of CPU fan connectors

2
TPM connector

Yes
Number of water pump connectors

2
RGB LED pin header

Yes
Ethernet interface type

2.5 Gigabit Ethernet
LAN controller

Realtek RTL8125
PC health monitoring

Fan, Temperature, Voltage, Water cooling
Power source type

ATX
2nd M.2 highest PCI Express generation

4.0
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Height

35 mm
Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software
Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III
ECC сompatibility

Non-ECC
Number of storage drives supported

6
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
RAID levels

0, 1, 10
Processor socket

Socket AM5
Supported processor sockets

Socket AM5
Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Number of EPS power connectors (8-pin)

1
2nd M.2 largest key size

25110
1st M.2 highest PCI Express generation

4.0
Number of RGB LED pin headers

3
1st M.2 largest key size

2580
Package weight

1.13 kg
PCI-Ex1

0
RAM-Slots

4
MB-Format

micro-ATX
Product colour

Dark brown
USB Type-C

N/A
MB-Socket

AM5
PCI-Ex16

2
Motherboard chipset

AMD B840
Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Producator

GIGABYTE
Garantie

36

Bazat pe 0 păreri

0.0 în ansamblu
0
0
0
0
0

Fii primul care face review la “Placa de Baza GIGABYTE B840M DS3H AM5, 4x DDR5, 1x”

Nu există recenzii încă.
