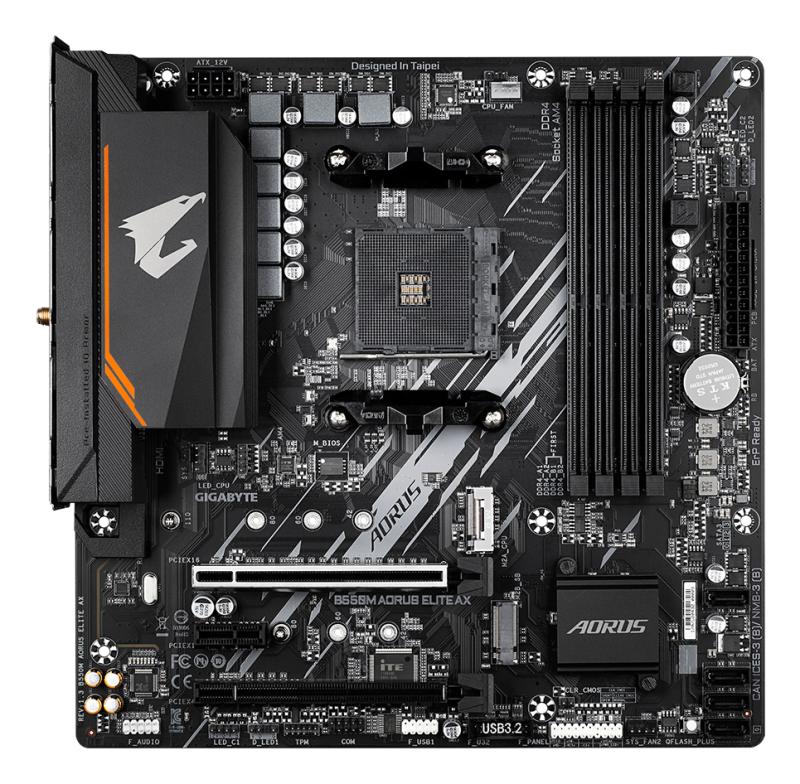

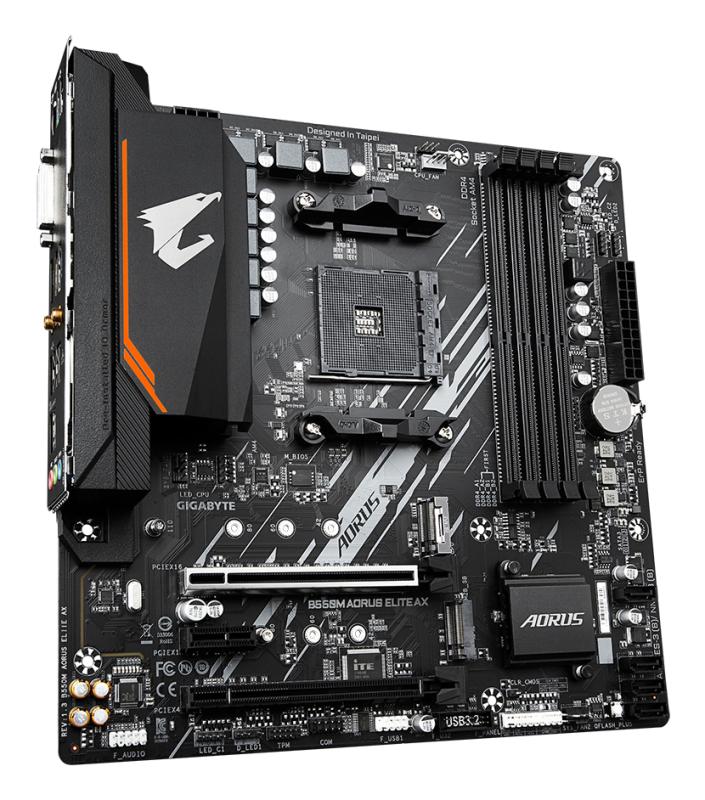

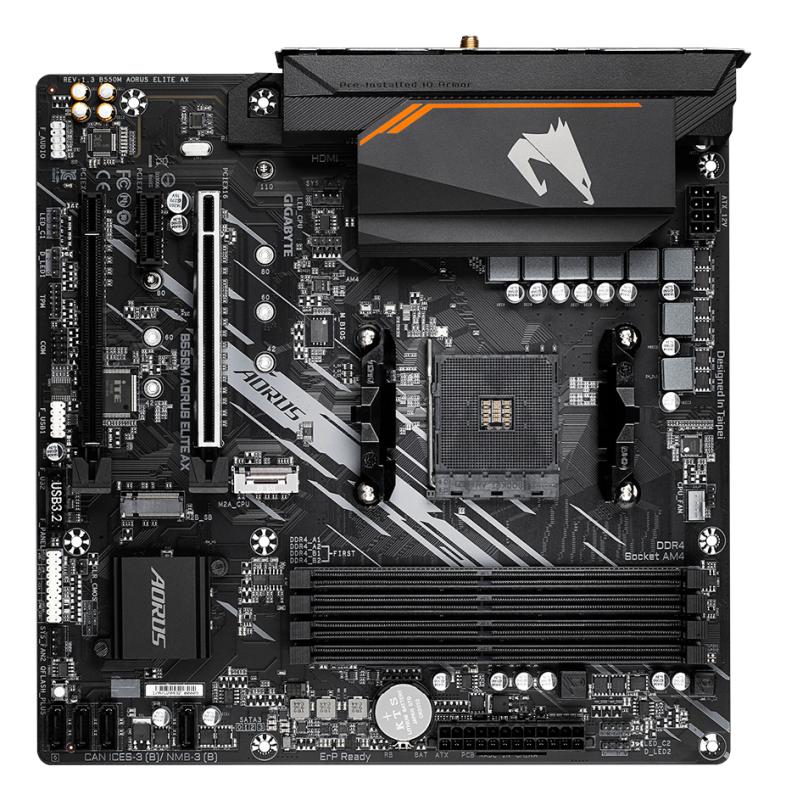

Placa de Baza GIGABYTE B550M AORUS ELITE AX AM4, 4x
10 în stoc
827,99 lei 944,99 lei
10 în stoc
Placa de Baza GIGABYTE B550M AORUS ELITE AX AM4, 4x DDR4, 1x DVI-D 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x4 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |

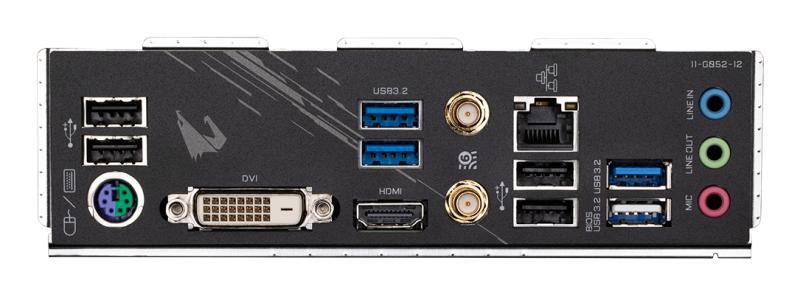

| Video-Connection | DVI/HDMI |
| Wi-Fi | Yes |
| USB3 | 4-8 |
| PCI-Ex1 | 1 |
| PCI-Ex16 | 1 |
| Onboard-CPU | No |
| Country of origin | China |
| RAID support | Yes |
| Component for | PC |
| Package width | 265 mm |
| Ethernet interface type | Gigabit Ethernet |
| Memory channels | Dual-channel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 GB |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Headphone outputs | 1 |
| Processor manufacturer | AMD |
| Microphone in | Yes |
| Depth | 244 mm |
| WLAN controller model | Realtek RTL8852CE |
| Products per shipping (inner) case | 1 pc(s) |
| Batteries included | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Line-in | Yes |
| Audio Chip | Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| LAN controller | Realtek RTL8111H |
| Number of M.2 (M) slots | 2 |
| Processor socket | Socket AM4 |
| Cooling type | Passive |
| Motherboard chipset | AMD B550 |
| HDCP | Yes |
| Screws included | Yes |
| DVI-D ports quantity | 1 |
| Product colour | Brown |
| VGA (D-Sub) ports quantity | 0 |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Package height | 65 mm |
| Package depth | 265 mm |
| Model Chipset | B550 |
| Gaming | Da |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket AM4 |
| Tip Memorie: | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| BLUETOOTH | Nu |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Width | 244 mm |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Front panel connector | Yes |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| WiFi-AP antenna jack | 2 |
| Power source type | ATX |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Height | 35 mm |
| Antenna included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Maximum number of SMP processors | 1 |
| 12V power connector | Yes |
| Number of storage drives supported | 6 |
| BIOS memory size | 128 Mbit |
| Serial port headers | 1 |
| RAID levels | 0, 1, 10 |
| 2nd M.2 largest key size | 2280 |
| USB 2.0 connectors | 1 |
| PC health monitoring | Fan, Temperature, Voltage |
| Number of EPS power connectors (8-pin) | 1 |
| Supported processor sockets | Socket AM4 |
| Number of CPU fan connectors | 1 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| Number of RGB LED pin headers | 5 |
| Package weight | 1.27 kg |
| Maximum internal memory per slot | 32 GB |
| RAM-Slots | 4 |
| MB-Format | micro-ATX |
| MB-Socket | AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| 2nd M.2 highest PCI Express generation | 3.0 |
| USB Type-C | N/A |
| Supported memory clock speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| Producator | GIGABYTE |
| Garantie | 36 |
