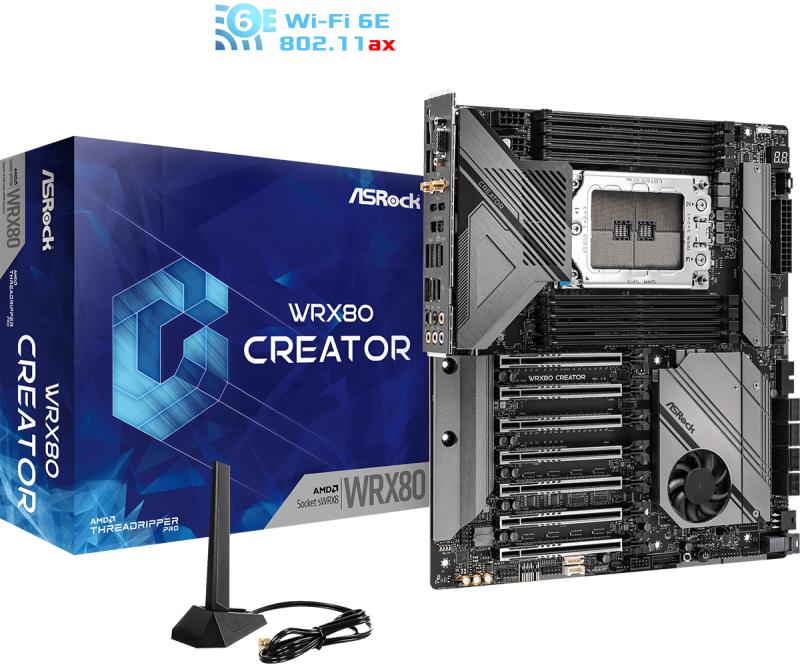

Placa de baza ASRock WRX80 Creator R2.0 sWRX8

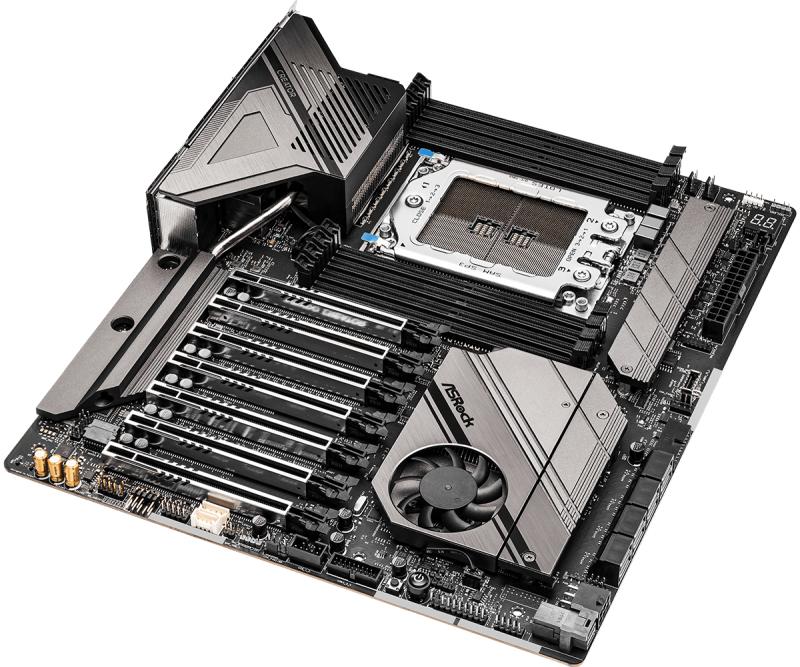

Placa de baza ASRock WRX80 Creator R2.0 sWRX8 - imagine 3

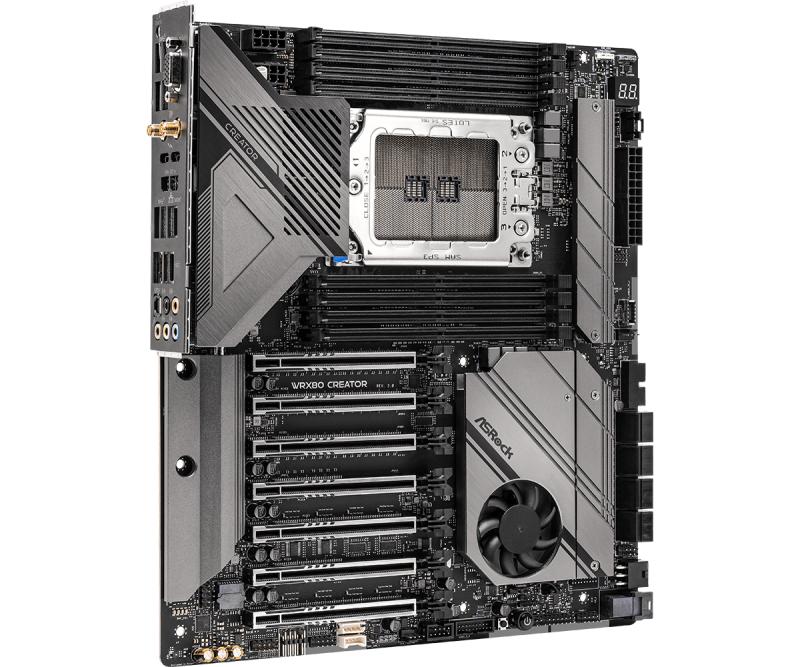

Placa de baza ASRock WRX80 Creator R2.0 sWRX8 - imagine 4

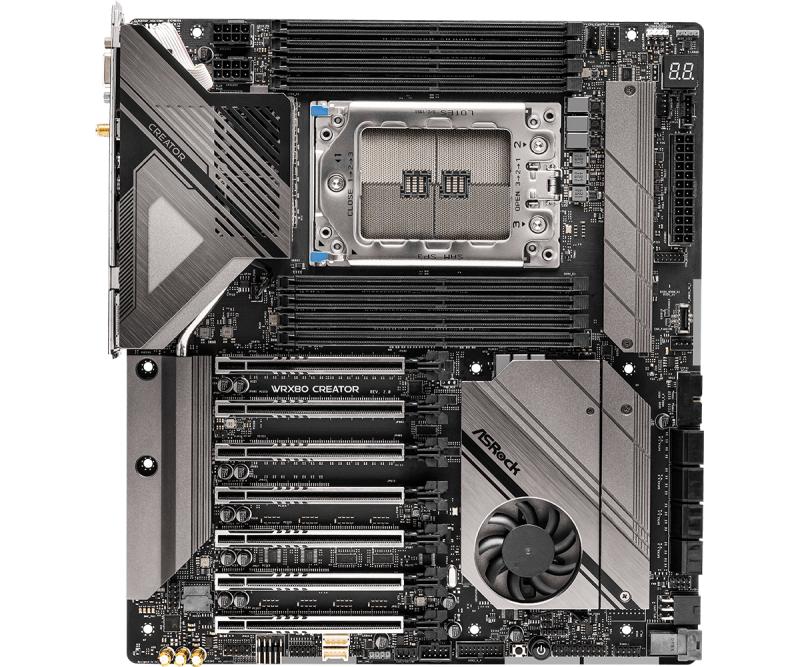

Placa de baza ASRock WRX80 Creator R2.0 sWRX8 - imagine 5

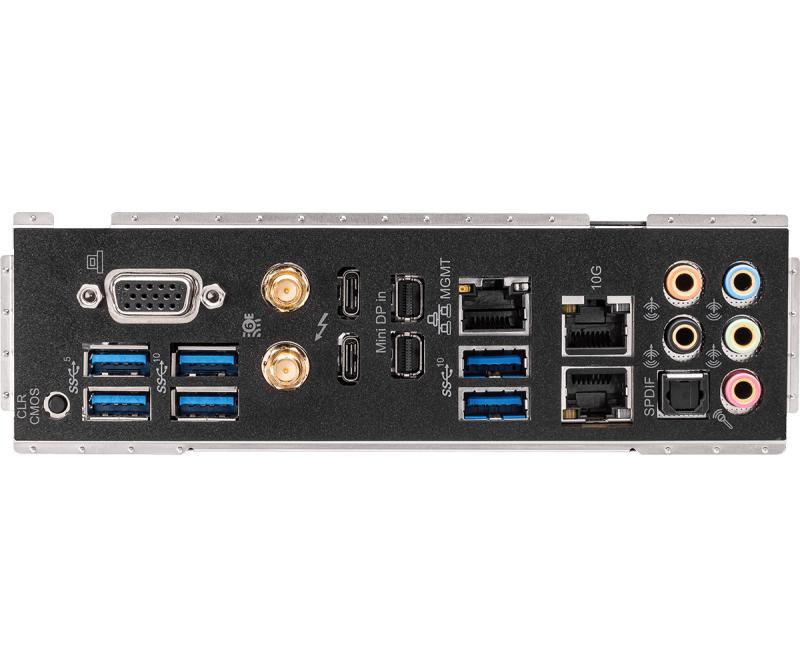

Placa de baza ASRock WRX80 Creator R2.0 sWRX8 - imagine 6
Placa de baza ASRock WRX80 Creator R2.0 sWRX8 - imagine 7
Placa de baza ASRock WRX80 Creator R2.0 sWRX8 - imagine 8
Placa de baza ASRock WRX80 Creator R2.0 sWRX8 - imagine 9
Placa de baza ASRock WRX80 Creator R2.0 sWRX8 - imagine 10
Placa de baza ASRock WRX80 Creator R2.0 sWRX8 - imagine 11

Placa de baza ASRock WRX80 Creator R2.0 sWRX8

SKU: WRX80 CREATOR R2.0
Producator: Asrock
Disponibilitate:

Stoc epuizat
Add to wishlist
Compare

7.857,99 lei

Stoc epuizat

Placa de baza ASRock WRX80 Creator R2.0, sWRX8 Supports AMD Ryzen™ Threadripper™ PRO 3000WX/5000WX Series Processors 8 Power Phase Design, 105A SPS 14 Layer Server-Grade Low-Loss PCB Supports DDR4 4533+(OC) 7 PCIe 4.0 x16 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 U.2 (PCIe Gen3 x4) 2 Thunderbolt™ 4 Type-C 5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear) 6 USB 3.2 Gen1 (4 Front, 2 Rear) 7.1 CH HD Audio (Realtek ALC4050H+ALC1220), Nahimic Audio Dual Marvell (Aquantia) 10Gbe LAN, 1 Dedicated IPMI LAN Intel® 802.11ax (WiFi 6E) + Bluetooth

SKU: WRX80 CREATOR R2.0 Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

VGA
Wi-Fi

Yes
Onboard-CPU

Yes
RAID support

Yes
Component for

PC
Wake-on-LAN ready

Yes
Thunderbolt ports quantity

2
On-board graphics card

Yes
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Ethernet LAN

Yes
Bluetooth version

5.3
Processor manufacturer

AMD
Microphone in

Yes
Width

305 mm
USB 2.0 ports quantity

0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
Audio output channels

7.1 channels
Line-in

Yes
Supported storage drive types

HDD & SSD
Supported memory types

DDR4-SDRAM
Number of M.2 (M) slots

1
S/PDIF out port

Yes
VGA (D-Sub) ports quantity

1
Ethernet LAN (RJ-45) ports

2
HDMI ports quantity

0
DVI-D ports quantity

0
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Model Chipset

WRX80
Gaming

Nu
Format

Extended ATX
Soclu Procesor

Socket sWRX8
Tip Memorie:

DDR4
Numar sloturi memorie

8
Memorie maxima

2 TB
Tip slot interfata grafica

PCIe 4.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Da
BLUETOOTH

Da
HDMI

Nu
Thunderbolt

Da
Sloturi M.2

1
RJ-45 LAN

2
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Motherboard chipset family

AMD
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
ECC сompatibility

ECC & Non-ECC
RAID levels

0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
TPM connector

Yes
RGB LED pin header

Yes
Maximum number of SMP processors

1
Cables included

SATA
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
Number of SATA III connectors

8
USB 2.0 connectors

1
ACPI version

5.1
System Management BIOS (SMBIOS) version

2.3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

4
Motherboard form factor

Extended ATX
Supported memory clock speeds

2133,2400,2667,2933,3200 MHz
Ethernet interface type

10 Gigabit Ethernet
Number of memory slots

8
Maximum internal memory

2.05 TB
Memory channels

Octa-channel
Motherboard chipset

AMD WRX80
USB Type-C

N/A
Processor socket

Socket sWRX8
Compatible processor series

AMD Ryzen™ 3, AMD Ryzen™ 5
Graphics card

AST2500
LAN controller

Marvell AQtion AQC113CS
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
PCI Express x16 (Gen 4.x) slots

7
Depth

272 mm
Producator

ASROCK
Garantie

36
