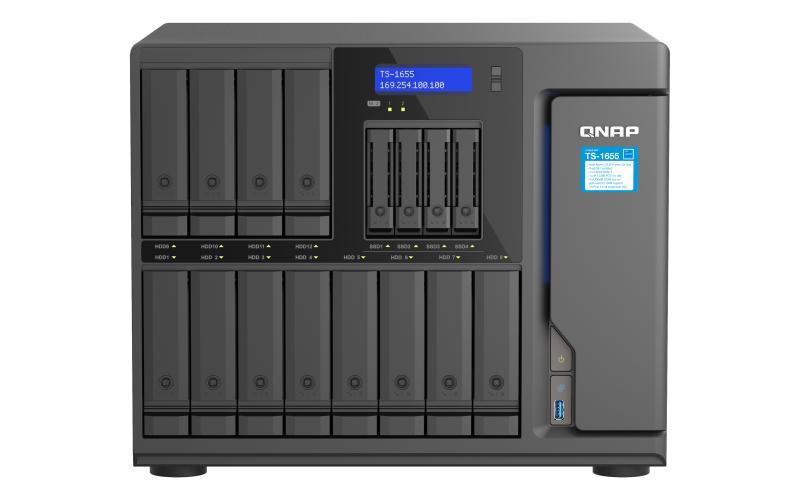

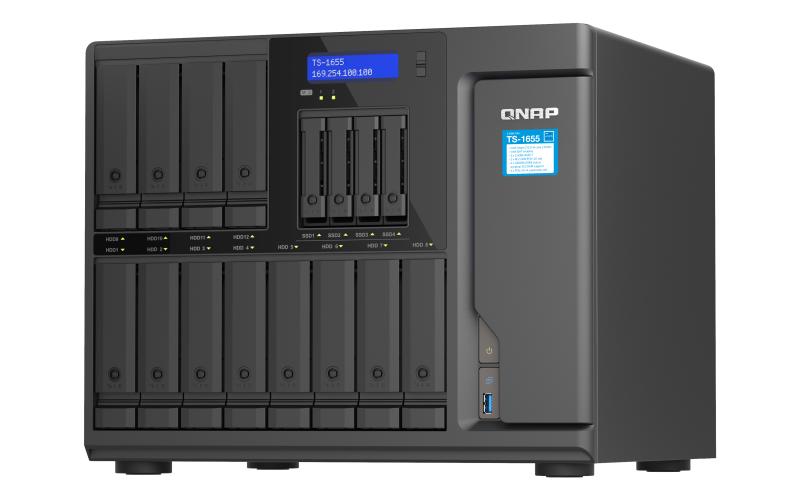

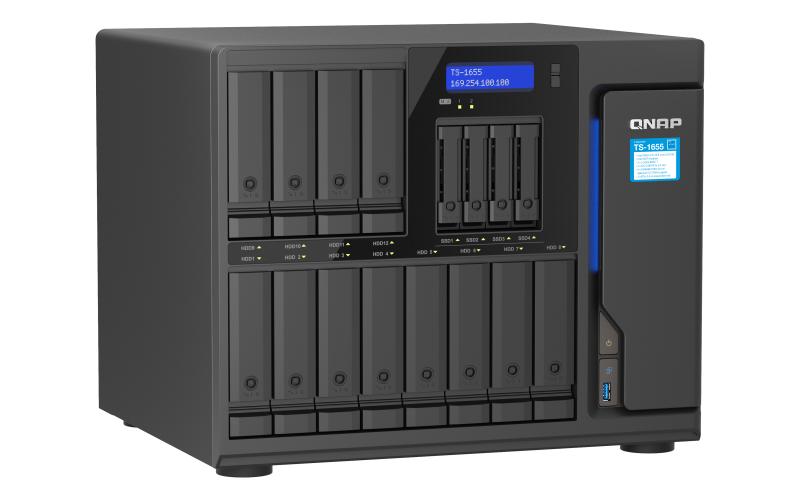

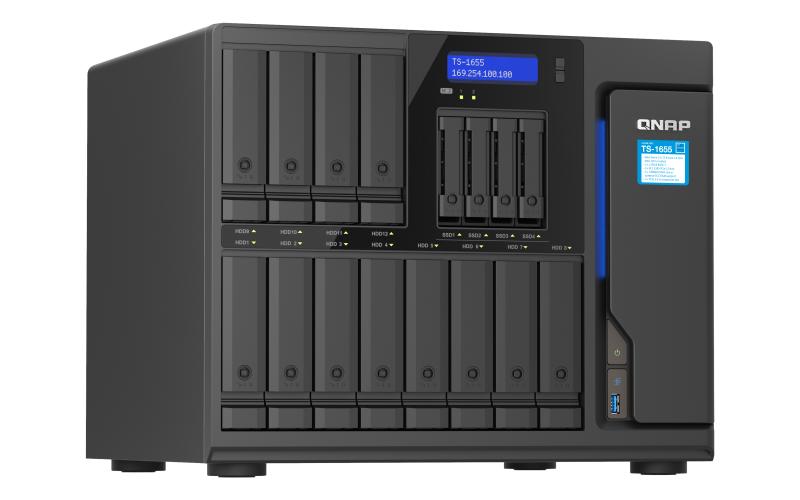

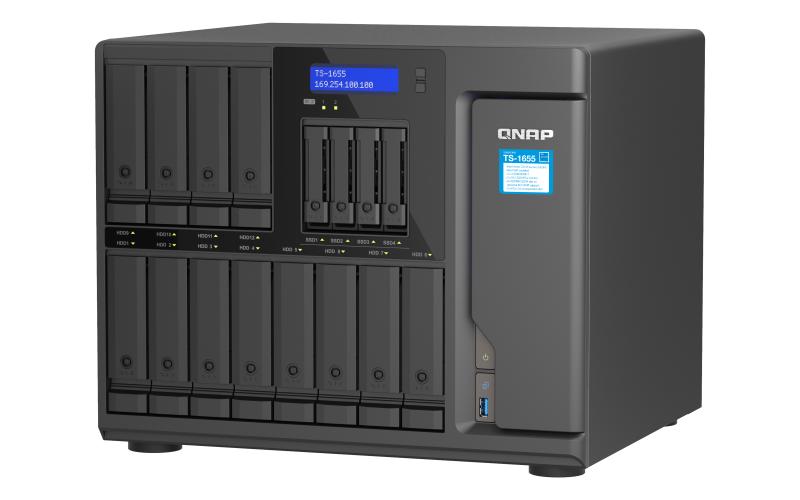

NAS QNAP 1655 16-Bay, CPU Intel® Atom® C5125 8-core/8-thread Processor, RAM 8GB DDR4 Long-DIMM non-ECC (1x 8GB), Max. 256GB ( 4 x 64G, ECC supported), 12 x 3.5″/2.5″ SATA 6Gb/s HDD/SSD bay + 4 x 2.5″ SATA 6Gb/s SSD bay + 2 x M.2 2280 PCIe Gen 3 x2 SSD slots HDD (neincluse), LAN: 2 x 2.5GbE (2.5G/1G/100M/10M), USB3.2 Gen2: 4, Tower, Single PSU, 550W, garantie 3 ani
ECC | Yes |
---|---|
Storage-Format | NAS |
Storage-Interface | RJ45+USB |
Storage-Type | HDD |
USB Port | Yes |
Supported-HDDs | 12 |
Operating relative humidity (H-H) | 5 – 95% |
Product colour | Black |
S.M.A.R.T. support | Yes |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Storage relative humidity (H-H) | 5 – 95% |
RAID support | Yes |
Operating temperature (T-T) | 0 – 40 °C |
Hot-swap drive bays | Yes |
DHCP client | Yes |
Jumbo frames support | Yes |
iSCSI support | Yes |
Wake-on-LAN ready | Yes |
Cooling type | Active |
Backup function | Yes |
Cables included | AC, LAN (RJ-45) |
On/off switch | Yes |
Storage temperature (T-T) | -20 – 70 °C |
Internal memory type | DDR4 |
Internal memory | 8 GB |
Processor cores | 8 |
Processor manufacturer | Intel |
Ethernet LAN | Yes |
Cable lock slot | Yes |
Processor threads | 8 |
Cable lock slot type | Kensington |
Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Built-in display | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Chassis type | Tower |
Supported storage drive types | HDD & SSD |
Ethernet LAN (RJ-45) ports | 2 |
AC input voltage | 100 – 240 V |
Processor frequency | 2.8 GHz |
Reset button | Yes |
DHCP server | Yes |
Access Control List (ACL) | Yes |
Dynamic DNS (DDNS) | Yes |
Number of power supply units | 1 |
Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
Fan diameter | 9.2 cm |
Fan voltage | 12 V |
Built-in FTP server | Yes |
Storage drives installed | No |
Total installed storage capacity | 0 TB |
Number of storage drives installed | 0 |
Installed storage drive type | No |
RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
Online RAID migration | Yes |
Online RAID expansion | Yes |
RAID rebuild | Yes |
Bad block scan | Yes |
Disk roaming | Yes |
Drive bay locking | Yes |
Device class | Small & Medium Business |
Buzzer | Yes |
Multilingual support | Yes |
Snapshot | Yes |
System log | Yes |
Hot spare | Yes |
USB copy function | Yes |
Operating system installed | QNAP Turbo System |
Power cables quantity | 1 |
Drive tray key included | Yes |
Storage drive sizes supported | 2.5,3.5,M.2 |
Number of M.2 (M & B) slots | 2 |
Management protocols | SNMP V2/V3 |
Share folder access right management | Yes |
Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
Disk scan | Yes |
Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
Password authentication | Yes |
Operating system version | 5.0.1 |
Supported storage drive interfaces | Serial ATA II, Serial ATA III |
Memory form factor | UDIMM |
Power supply location | Built-in |
Flash memory | 5000 MB |
Backup features | Cloud, USB drive, iSCSI LUN |
Number of users | 4096 user(s) |
Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH, TLS |
Share folder | CIFS/SMB, AFP, NFS, FTP |
Processor family | Intel Atom® |
Processor model | C5125 |
Maximum RAM supported | 128 GB |
Memory slots | 4 |
Concurrent connections | 700 |
Depth | 319.8 mm |
Number of storage drives supported | 16 |
Power supply unit (PSU) capacity | 550 W |
PCI Express x4 (Gen 3.x) slots | 3 |
Number of fans | 5 fan(s) |
Fan diameter 2 | 9.7 cm |
LED indicators | HDD, LAN, M.2, Power, SSD, Status, USB |
Power consumption (typical) | 104.65 W |
Power consumption (HDD standby) | 94.957 W |
Width | 369.9 mm |
Height | 303.8 mm |
Number of screws | 72 |
Format | Tower |
Frecventa Procesor: | 2.8 GHz |
Media storage inclus: | Nu |
Media storage suportat: | 16 |
Tip Media storage : | HDD si SSD |
Memorie RAM instalata: | 8GB |
Tip Memorie: | DDR4 |
Numar porturi RJ-45: | 2 |
HDMI | Nu |
Producator | QNAP |
Garantie | 36 |
