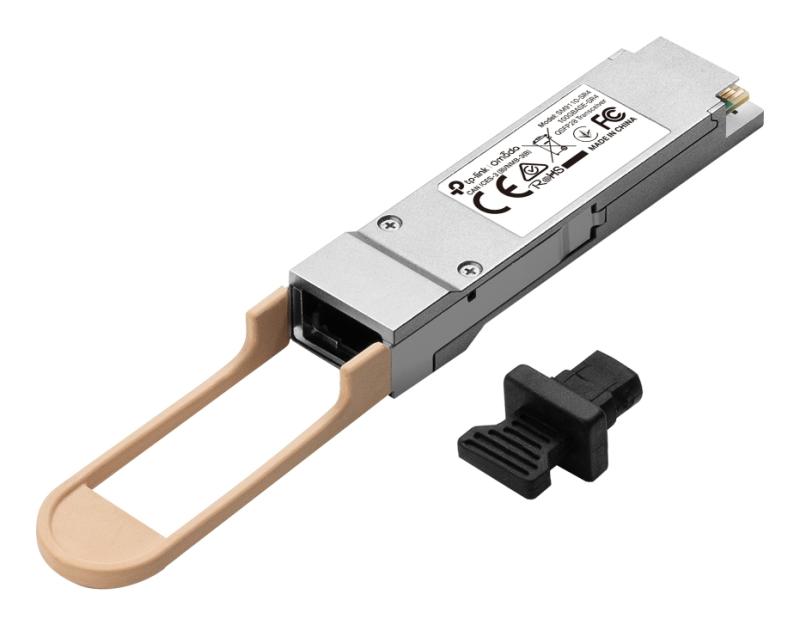

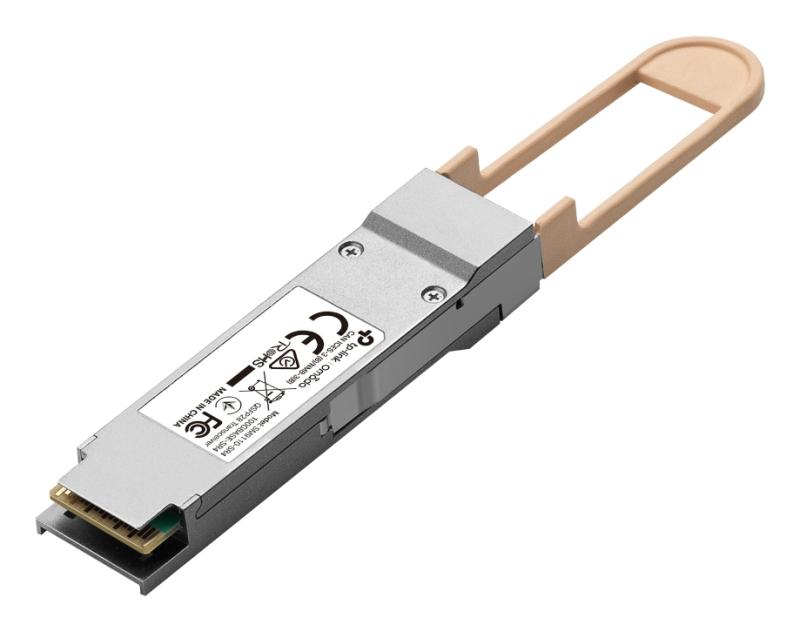

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and
Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and - imagine 3
Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and - imagine 4
Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and - imagine 5

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and

SKU: TL-SM9110-SR4
Producator: Tp-link
Disponibilitate:

5 în stoc
Add to wishlist
Compare

787,99 lei 1.205,99 lei

5 în stoc

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @OM4 at 103.125Gbps (70m Distance @OM3 at 103.125Gbps, 150m Distance @OM4 at 41.2Gbps) FEATURE: Support DDM, Built-in CDR, Hot Swappable

SKU: TL-SM9110-SR4 Categorie:
Switch-CM-Type

SFP
Quantity per pack

1 pc(s)
Maximum operating temperature

70 °C
Country of origin

China
Compliance certificates

CE, Federal Communications Commission (FCC), RoHS
Operating temperature (T-T)

0 – 70 °C
Storage temperature (T-T)

-40 – 85 °C
Plug and Play

Yes
Height

11.7 mm
Hot-swap

Yes
User guide

Yes
Storage relative humidity (H-H)

0 – 85%
Product colour

Metallic
Operating relative humidity (H-H)

0 – 85%
Minimum operating temperature

0 °C
Width

124 mm
SFP transceiver type

Fiber optic
Maximum data transfer rate

100000 Mbit/s
Interface type

QSFP28
Multi-mode fiber (MMF) supported

Yes
SFP transceiver standard

SR4
Wavelength

850 nm
Depth

18.4 mm
Input voltage

3.3 V
Single-mode fiber (SMF) supported

No
Maximum transfer distance

150 m
Digital Diagnostics Monitoring (DDM)

Yes
Fiber cable diameters supported (core/cladding)

50/125 µm
Data transfer rate

100000 Mbit/s
Fiber optic connector

MPO-12, MTP
Tx power (min)

-8.4 dBmW
Tx power (max)

2.4 dBmW
Ethernet interface type

40 Gigabit Ethernet, 100 Gigabit Ethernet
Networking standards

IEEE 802.3ba, IEEE 802.3bm
Fiber ethernet cabling technology

40GBASE, 100GBASE
Form factor

QSFP28
Certification

QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Producator

TP-LINK
Garantie

60
